Diffraction project datasets TM1506_1vk9
- Method: MAD
- Resolution: 2.7 Å
- Space group: P 62 2 2
PDB website for 1VK9
doi:10.18430/M31VK9
Project details

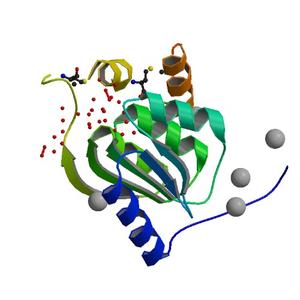

| Title | CRYSTAL STRUCTURE OF A DUF1893 family protein (TM1506) FROM THERMOTOGA MARITIMA AT 2.70 A RESOLUTION |
| Authors | Xu, Q., Kozbial, P., McMullan, D., Krishna, S.S., Brittain, S.M., Ficarro, S.B., DiDonato, M., Miller, M.D., Abdubek, P., Axelrod, H.L., Chiu, H.J., Clayton, T., Duan, L., Elsliger, M.A., Feuerhelm, J., Grzechnik, S.K., Hale, J., Han, G.W., Jaroszewski, L., Klock, H.E., Morse, A.T., Nigoghossian, E., Paulsen, J., Reyes, R., Rife, C.L., van den Bedem, H., White, A., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 132.89 x 132.89 x 66.38 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

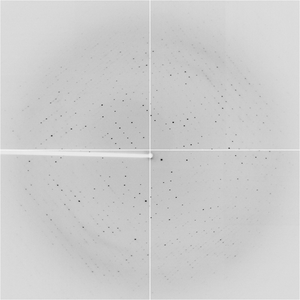

Dataset 9168_1_E1_###.img details
| Number of frames | 60 (1 - 60) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 183.0 |
| Wavelength [Å] | 0.97960 |
| Experiment Date | 2003-12-12 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

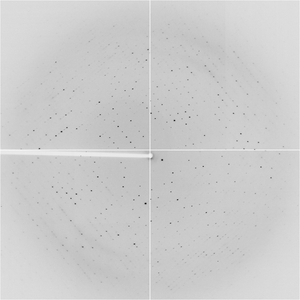

Dataset 9168_1_E2_###.img details
| Number of frames | 60 (1 - 60) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 183.0 |
| Wavelength [Å] | 1.03320 |
| Experiment Date | 2003-12-12 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

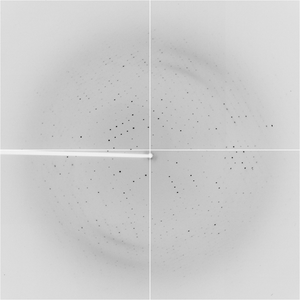

Dataset 9168_2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 243.0 |
| Wavelength [Å] | 0.97950 |
| Experiment Date | 2003-12-12 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |
