Diffraction project datasets TM1459_1vj2
- Method: Molecular Replacement
- Resolution: 1.65 Å
- Space group: P 32
PDB website for 1VJ2
PDB validation report for 1VJ2
doi:10.18430/M31VJ2
Project details

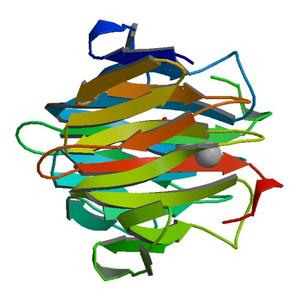

| Title | Crystal structure of a novel family of manganese-containing cupin (tm1459) from thermotoga maritima at 1.65 A resolution |
| Authors | Jaroszewski, L., Schwarzenbacher, R., von Delft, F., McMullan, D., Brinen, L.S., Canaves, J.M., Dai, X., Deacon, A.M., DiDonato, M., Elsliger, M.A., Eshagi, S., Floyd, R., Godzik, A., Grittini, C., Grzechnik, S.K., Hampton, E., Levin, I., Karlak, C., Klock, H.E., Koesema, E., Kovarik, J.S., Kreusch, A., Kuhn, P., Lesley, S.A., McPhillips, T.M., Miller, M.D., Morse, A., Moy, K., Ouyang, J., Page, R., Quijano, K., Reyes, R., Rezezadeh, F., Robb, A., Sims, E., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Vincent, J., Wang, X., West, B., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.21 / 0.25 |
| Unit cell edges [Å] | 52.55 x 52.55 x 96.27 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

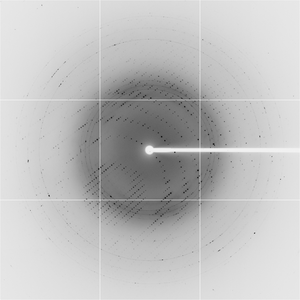

Dataset 5c4p1_1_###.img details
| Number of frames | 60 (1 - 60) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 2.00 |
| Phi [°] | 296.0 |
| Wavelength [Å] | 0.97239 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
