Diffraction project datasets TM1394_1vq0
- Method: Molecular Replacement
- Resolution: 2.2 Å
- Space group: P 21 21 21
PDB website for 1VQ0
PDB validation report for 1VQ0
doi:10.18430/M31VQ0
Project details

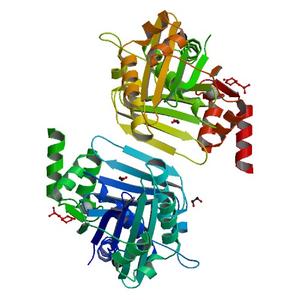

| Title | Crystal structure of 33 kDa chaperonin (Heat shock protein 33 homolog) (HSP33) (TM1394) from Thermotoga maritima at 2.20 A resolution |
| Authors | Jaroszewski, L., Schwarzenbacher, R., McMullan, D., Abdubek, P., Agarwalla, S., Ambing, E., Axelrod, H., Biorac, T., Canaves, J.M., Chiu, H.J., Deacon, A.M., DiDonato, M., Elsliger, M.A., Godzik, A., Grittini, C., Grzechnik, S.K., Hale, J., Hampton, E., Han, G.W., Haugen, J., Hornsby, M., Klock, H.E., Koesema, E., Kreusch, A., Kuhn, P., Lesley, S.A., Miller, M.D., Moy, K., Nigoghossian, E., Paulsen, J., Quijano, K., Reyes, R., Rife, C., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Vincent, J., White, A., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 76.21 x 101.67 x 113.69 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

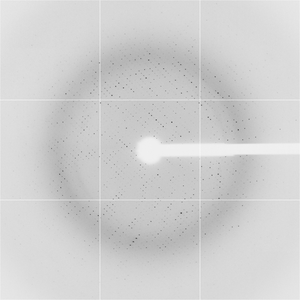

Dataset 10192_anneal_1_###.img details
| Number of frames | 101 (1 - 101) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 99.0 |
| Wavelength [Å] | 0.97912 |
| Equipment | BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
