Diffraction project datasets TM1351_2o5r

  • Method: MAD, Molecular Replacement
  • Resolution: 2.34 Å
  • Space group: P 31 2 1
Download all images (4.8 GB)

PDB website for 2O5R
PDB validation report for 2O5R

doi:10.18430/M32O5R

Project details

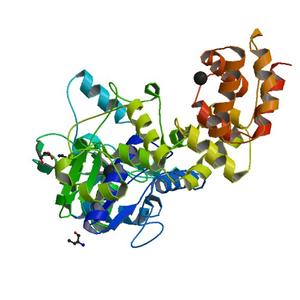

Title Crystal structure of Glutamyl-tRNA synthetase 1 (EC 6.1.1.17) (Glutamate-tRNA ligase 1) (GluRS 1) (TM1351) from Thermotoga maritima at 2.5 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.23 / 0.27
Unit cell edges [Å] 69.95 x 69.95 x 283.95
Unit cell angles [°] 90.0, 90.0, 120.0

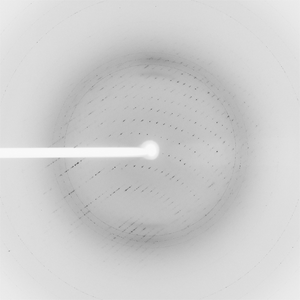

Dataset 30995_1_E1.#### details

Number of frames 120 (1 - 120)
Distance [mm] 330.0
Oscillation width [°] 1.00
Omega [°] 195.0
Phi [°] -1.0
Wavelength [Å] 0.97942
Experiment Date 2006-08-11
Equipment 23-ID-D at APS (Advanced Photon Source)

Dataset 30995_1_E2.#### details

Number of frames 120 (1 - 120)
Distance [mm] 330.0
Oscillation width [°] 1.00
Omega [°] 195.0
Phi [°] -1.0
Wavelength [Å] 0.94929
Experiment Date 2006-08-11
Equipment 23-ID-D at APS (Advanced Photon Source)

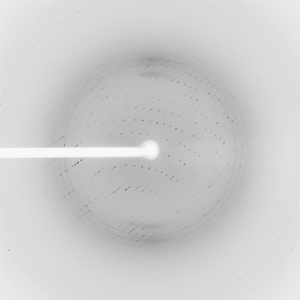

Dataset 30995_2.#### details

Number of frames 120 (1 - 120)
Distance [mm] 330.0
Oscillation width [°] 1.00
Omega [°] 195.0
Phi [°] -1.0
Wavelength [Å] 0.97928
Experiment Date 2006-08-11
Equipment 23-ID-D at APS (Advanced Photon Source)
