Diffraction project datasets TM1287_1o4t
- Method: Molecular Replacement
- Resolution: 1.95 Å
- Space group: C 1 2 1
PDB website for 1O4T
doi:10.18430/M31O4T
Project details

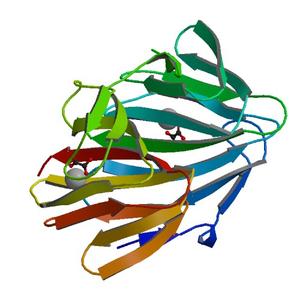

| Title | Crystal structure of a predicted oxalate decarboxylase (tm1287) from thermotoga maritima at 1.95 A resolution |
| Authors | Schwarzenbacher, R., von Delft, F., Jaroszewski, L., Abdubek, P., Ambing, E., Biorac, T., Brinen, L.S., Canaves, J.M., Cambell, J., Chiu, H.J., Dai, X., Deacon, A.M., DiDonato, M., Elsliger, M.A., Eshagi, S., Floyd, R., Godzik, A., Grittini, C., Grzechnik, S.K., Hampton, E., Karlak, C., Klock, H.E., Koesema, E., Kovarik, J.S., Kreusch, A., Kuhn, P., Lesley, S.A., Levin, I., McMullan, D., McPhillips, T.M., Miller, M.D., Morse, A., Moy, K., Ouyang, J., Page, R., Quijano, K., Robb, A., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Vincent, J., Wang, X., West, B., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Wilson, I.A. |
| R / Rfree | 0.16 / 0.22 |
| Unit cell edges [Å] | 89.13 x 49.74 x 69.55 |
| Unit cell angles [°] | 90.0, 123.7, 90.0 |

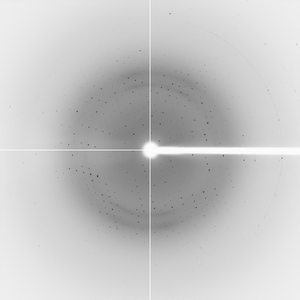

Dataset v158_1_###.img details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 175.0 |
| Oscillation width [°] | 2.00 |
| Phi [°] | 150.0 |
| Wavelength [Å] | 0.98397 |
| Equipment | BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
