Diffraction project datasets TM1272_2gi3
Project details
| Title |

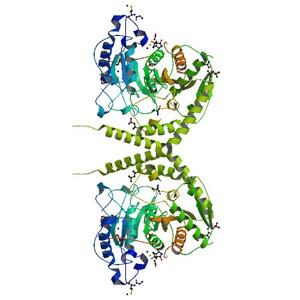

Crystal structure of Glutamyl-tRNA(Gln) amidotransferase subunit A (tm1272) from THERMOTOGA MARITIMA at 1.80 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.20 |
| Unit cell edges [Å] |
131.78 x
131.78 x
61.99
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

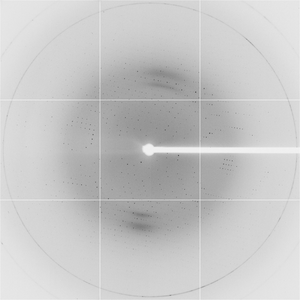

Dataset 21629_1_E1_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
84.0 |
| Wavelength [Å] |
0.97905 |
| Equipment |
BL1-5
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 21629_1_E2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
84.0 |
| Wavelength [Å] |
0.91838 |
| Equipment |
BL1-5
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

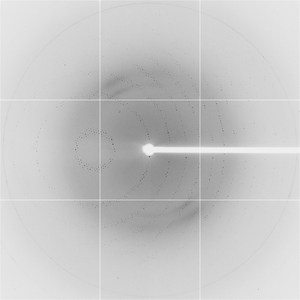

Dataset 21629_2_E1_###.img details
| Number of frames |
30 (1 - 30) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
174.0 |
| Wavelength [Å] |
0.97905 |
| Equipment |
BL1-5
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

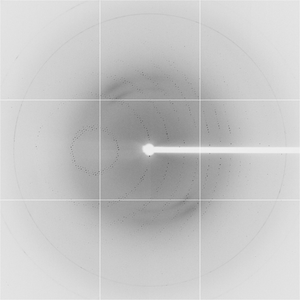

Dataset 21629_2_E2_###.img details
| Number of frames |
30 (1 - 30) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
174.0 |
| Wavelength [Å] |
0.91838 |
| Equipment |
BL1-5
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

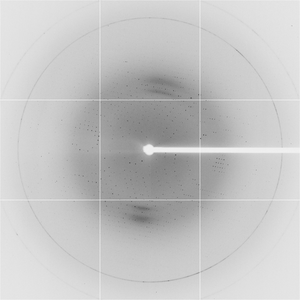

Dataset 21629_3_###.img details
| Number of frames |
130 (1 - 130) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
84.0 |
| Wavelength [Å] |
0.97866 |
| Equipment |
BL1-5
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
