Diffraction project datasets TM1255_1o4s
- Method: MR
- Resolution: 1.9 Å
- Space group: P 21 21 21
PDB website for 1O4S
doi:10.18430/M31O4S
Project details

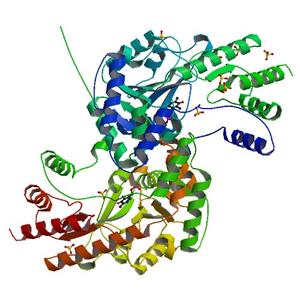

| Title | Crystal structure of Aspartate aminotransferase (TM1255) from Thermotoga maritima at 1.90 A resolution |
| Authors | Schwarzenbacher, R., Jaroszewski, L., von Delft, F., Abdubek, P., Ambing, E., Biorac, T., Brinen, L.S., Canaves, J.M., Cambell, J., Chiu, H.J., Dai, X., Deacon, A.M., DiDonato, M., Elsliger, M.A., Eshagi, S., Floyd, R., Godzik, A., Grittini, C., Grzechnik, S.K., Hampton, E., Karlak, C., Klock, H.E., Koesema, E., Kovarik, J.S., Kreusch, A., Kuhn, P., Lesley, S.A., Levin, I., McMullan, D., McPhillips, T.M., Miller, M.D., Morse, A., Moy, K., Ouyang, J., Page, R., Quijano, K., Robb, A., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Vincent, J., Wang, X., West, B., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Wilson, I.A. |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 64.05 x 79.51 x 170.18 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

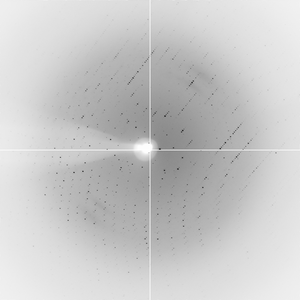

Dataset 3332_1_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.90000 |
| Experiment Date | 2003-04-17 |
| Equipment | 14-BM-C at APS (Advanced Photon Source) |

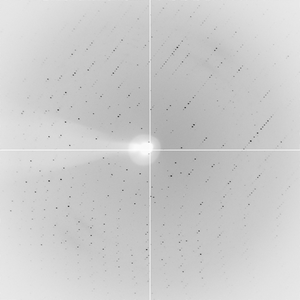

Dataset 3332_2_###.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.75 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.90000 |
| Experiment Date | 2003-04-17 |
| Equipment | 14-BM-C at APS (Advanced Photon Source) |
