Diffraction project datasets TM1246_1vk3
- Method: MAD
- Resolution: 2.15 Å
- Space group: P 21 21 21
PDB website for 1VK3
doi:10.18430/M31VK3
Project details

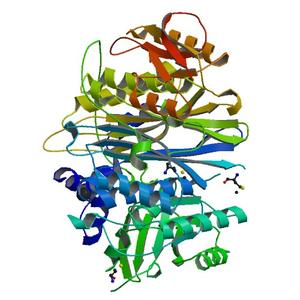

| Title | Crystal structure of Phosphoribosylformylglycinamidine synthase II (TM1246) from Thermotoga maritima at 2.15 A resolution |
| Authors | Mathews, I.I., Krishna, S.S., Schwarzenbacher, R., McMullan, D., Abdubek, P., Ambing, E., Canaves, J.M., Chiu, H.J., Deacon, A.M., DiDonato, M., Elsliger, M.A., Godzik, A., Grittini, C., Grzechnik, S.K., Hale, J., Hampton, E., Han, G.W., Haugen, J., Jaroszewski, L., Klock, H.E., Koesema, E., Kreusch, A., Kuhn, P., Lesley, S.A., Levin, I., Miller, M.D., Moy, K., Nigoghossian, E., Paulsen, J., Quijano, K., Reyes, R., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., White, A., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Wilson, I.A. |
| R / Rfree | 0.19 / 0.25 |
| Unit cell edges [Å] | 59.78 x 72.69 x 128.42 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

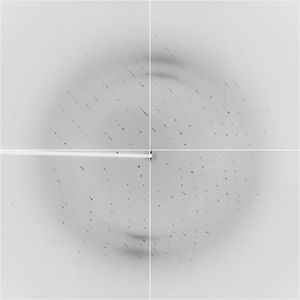

Dataset 1246_1_E1_###.img details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 279.0 |
| Wavelength [Å] | 0.97960 |
| Experiment Date | 2003-12-12 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

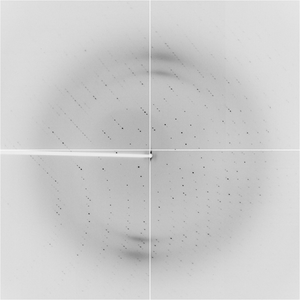

Dataset 1246_1_E2_###.img details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 279.0 |
| Wavelength [Å] | 1.00350 |
| Experiment Date | 2003-12-12 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

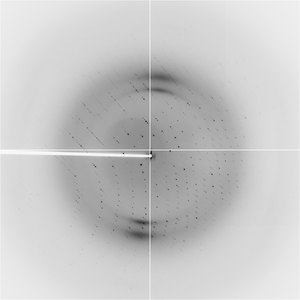

Dataset 1246HR_3_###.img details
| Number of frames | 135 (1 - 135) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.80 |
| Phi [°] | 279.0 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2003-12-12 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

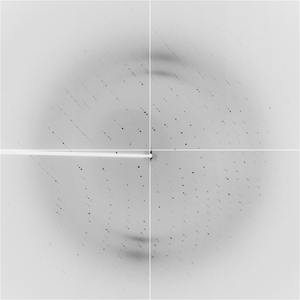

Dataset 1246P_2_###.img details
| Number of frames | 95 (1 - 95) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 279.0 |
| Wavelength [Å] | 1.00320 |
| Experiment Date | 2003-12-12 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |
