Diffraction project datasets TM1225_1vkd
Project details
Title |

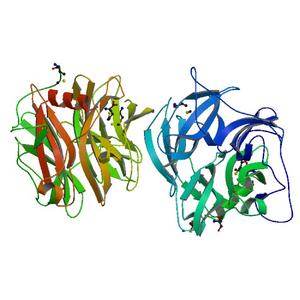

Crystal structure of a predicted glycosidase (tm1225) from thermotoga maritima msb8 at 2.10 A resolution |
Authors |
Joint Center for Structural Genomics (JCSG) |
Bioentity |
None |
R / Rfree |
0.16 / 0.20 |
Unit cell edges [Å] |
86.87 x
100.91 x
253.43
|
Unit cell angles [°] |
90.0,
90.0,
90.0
|

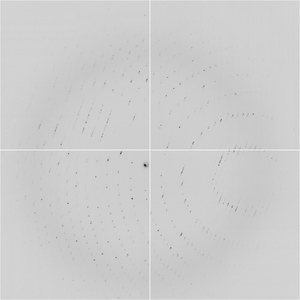

Dataset 9664_1_E1_###.img details
Number of frames |
360 (1 - 360) |
Distance [mm] |
275.0 |
Oscillation width [°] |
0.25 |
Phi [°] |
26.0 |
Wavelength [Å] |
0.97974 |
Equipment |
8.3.1
at ALS (Advanced Light Source)
|

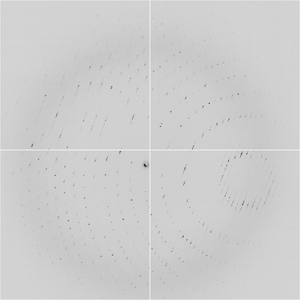

Dataset 9664_1_E2_###.img details
Number of frames |
360 (1 - 360) |
Distance [mm] |
275.0 |
Oscillation width [°] |
0.25 |
Phi [°] |
26.0 |
Wavelength [Å] |
1.01978 |
Equipment |
8.3.1
at ALS (Advanced Light Source)
|

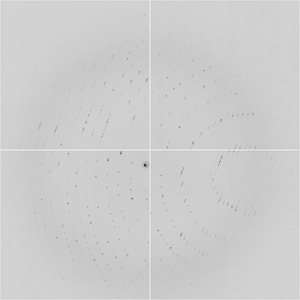

Dataset 9664_2_###.img details
Number of frames |
496 (1 - 496) |
Distance [mm] |
275.0 |
Oscillation width [°] |
0.25 |
Phi [°] |
26.0 |
Wavelength [Å] |
0.97951 |
Equipment |
8.3.1
at ALS (Advanced Light Source)
|

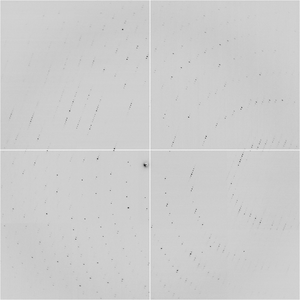

Dataset 9664_3_###.img details
Number of frames |
500 (1 - 500) |
Distance [mm] |
350.0 |
Oscillation width [°] |
0.25 |
Phi [°] |
26.0 |
Wavelength [Å] |
0.97951 |
Equipment |
8.3.1
at ALS (Advanced Light Source)
|

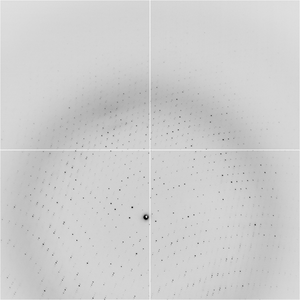

Dataset 9664high_1_###.img details
Number of frames |
999 (1 - 999) |
Distance [mm] |
260.0 |
Oscillation width [°] |
0.30 |
Wavelength [Å] |
1.11589 |
Equipment |
8.3.1
at ALS (Advanced Light Source)
|

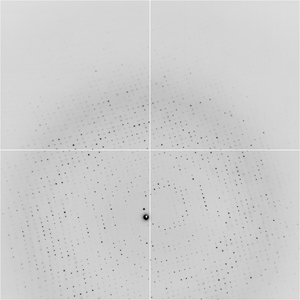

Dataset 9664high_2_###.img details
Number of frames |
186 (1 - 186) |
Distance [mm] |
260.0 |
Oscillation width [°] |
0.30 |
Phi [°] |
299.0 |
Wavelength [Å] |
1.11590 |
Equipment |
8.3.1
at ALS (Advanced Light Source)
|

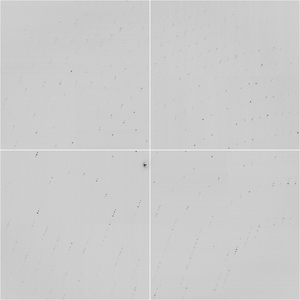

Dataset 9664infl_low_4_###.img details
Number of frames |
194 (1 - 194) |
Distance [mm] |
400.0 |
Oscillation width [°] |
0.75 |
Phi [°] |
15.0 |
Wavelength [Å] |
0.97974 |
Equipment |
8.3.1
at ALS (Advanced Light Source)
|

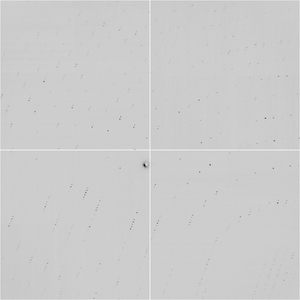

Dataset 9664low_3_###.img details
Number of frames |
194 (1 - 194) |
Distance [mm] |
400.0 |
Oscillation width [°] |
0.75 |
Phi [°] |
15.0 |
Wavelength [Å] |
1.11589 |
Equipment |
8.3.1
at ALS (Advanced Light Source)
|
