Diffraction project datasets TM1185_1vmd

  • Method: Molecular Replacement
  • Resolution: 2.06 Å
  • Space group: I 2 3
Download all images (296.4 MB)

PDB website for 1VMD

doi:10.18430/M31VMD

Project details

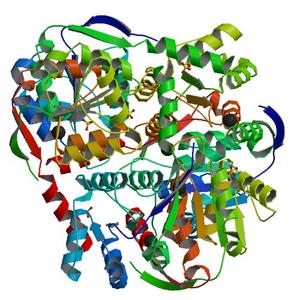

Title Crystal structure of Methylglyoxal synthase (TM1185) from Thermotoga maritima at 2.06 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 130.24 x 130.24 x 130.24
Unit cell angles [°] 90.0, 90.0, 90.0

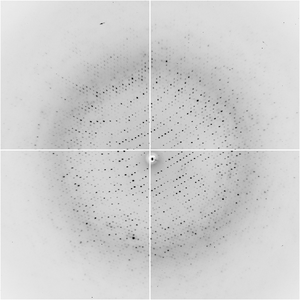

Dataset 9439_1_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 210.0
Oscillation width [°] 0.50
Phi [°] 105.0
Wavelength [Å] 1.00000
Experiment Date 2004-01-08
Equipment 5.0.1 at ALS (Advanced Light Source)

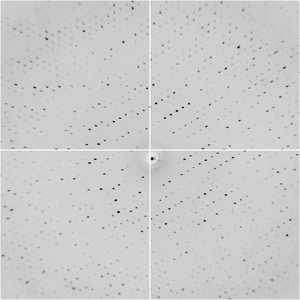

Dataset 9439_2_###.img details

Number of frames 40 (1 - 40)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 105.0
Wavelength [Å] 1.00000
Experiment Date 2004-01-08
Equipment 5.0.1 at ALS (Advanced Light Source)
