Diffraction project datasets TM1154_1vl1

  • Method: Molecular Replacement
  • Resolution: 1.55 Å
  • Space group: C 2 2 21
Download all images (3.4 GB)

PDB website for 1VL1

doi:10.18430/M31VL1

Project details

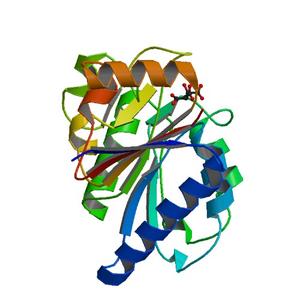

Title Crystal structure of 6-phosphogluconolactonase (TM1154) from Thermotoga maritima at 1.70A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 37.73 x 75.15 x 148.44
Unit cell angles [°] 90.0, 90.0, 90.0

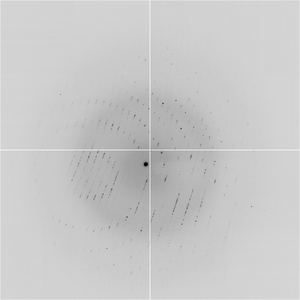

Dataset 10167_1_###.img details

Number of frames 500 (1 - 500)
Distance [mm] 150.0
Oscillation width [°] 0.20
Phi [°] 280.0
Wavelength [Å] 1.00004
Equipment 8.3.1 at ALS (Advanced Light Source)

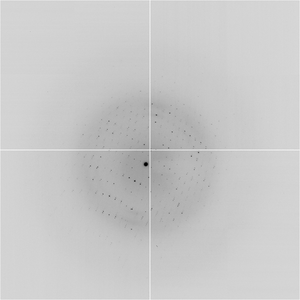

Dataset 10167_2_###.img details

Number of frames 152 (1 - 152)
Distance [mm] 150.0
Oscillation width [°] 0.20
Phi [°] 260.0
Wavelength [Å] 1.00003
Equipment 8.3.1 at ALS (Advanced Light Source)
