Diffraction project datasets TM1131_1vp4
Project details
| Title |

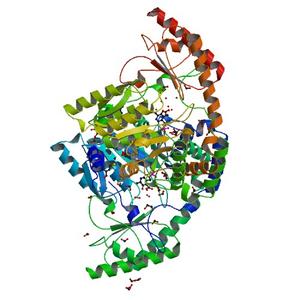

Crystal structure of a putative aminotransferase (tm1131) from thermotoga maritima msb8 at 1.82 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.20 |
| Unit cell edges [Å] |
165.12 x
165.12 x
68.70
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

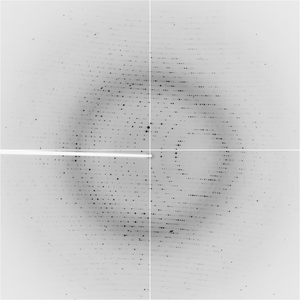

Dataset 11504_1_###.img details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
199.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
-81.0 |
| Wavelength [Å] |
0.97940 |
| Experiment Date |
2004-08-04 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

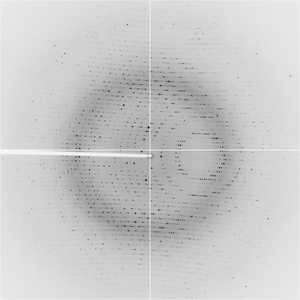

Dataset 11504_2_E1_###.img details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
199.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
-81.0 |
| Wavelength [Å] |
0.97960 |
| Experiment Date |
2004-08-04 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

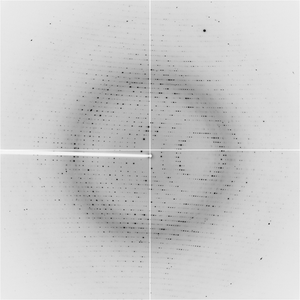

Dataset 11504_2_E2_###.img details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
199.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
-81.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2004-08-04 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

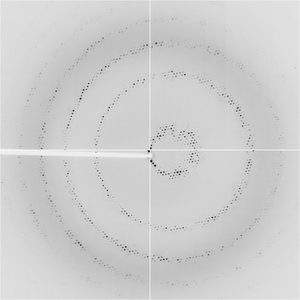

Dataset 11504_3_###.img details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
189.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2004-08-04 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|
