Diffraction project datasets TM1112_1o5u
- Method: Molecular Replacement
- Resolution: 1.83 Å
- Space group: P 1 21 1
PDB website for 1O5U
PDB validation report for 1O5U
doi:10.18430/M31O5U
Project details

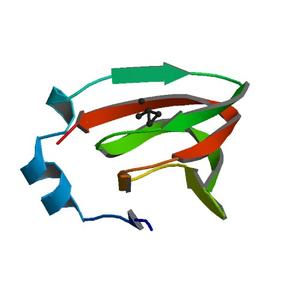

| Title | Crystal structure of a duf861 family protein (tm1112) from thermotoga maritima at 1.83 A resolution |
| Authors | McMullan, D., Schwarzenbacher, R., Jaroszewski, L., von Delft, F., Klock, H.E., Vincent, J., Quijano, K., Abdubek, P., Ambing, E., Biorac, T., Brinen, L.S., Canaves, J.M., Dai, X., Deacon, A.M., DiDonato, M., Elsliger, M.A., Eshaghi, S., Floyd, R., Godzik, A., Grittini, C., Grzechnik, S.K., Hampton, E., Karlak, C., Koesema, E., Kreusch, A., Kuhn, P., Levin, I., McPhillips, T.M., Miller, M.D., Morse, A., Moy, K., Ouyang, J., Page, R., Reyes, R., Rezezadeh, F., Robb, A., Sims, E., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Wang, X., West, B., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 39.63 x 74.73 x 42.21 |
| Unit cell angles [°] | 90.0, 91.0, 90.0 |

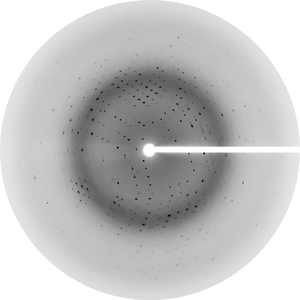

Dataset c6p3_1_###.mar1600 details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 12.0 |
| Wavelength [Å] | 0.97001 |
| Experiment Date | 2001-06-03 |
| Equipment | BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
Dataset c6p3_2_###.mar1200 details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 265.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 12.0 |
| Wavelength [Å] | 0.97001 |
| Experiment Date | 2001-06-04 |
| Equipment | BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

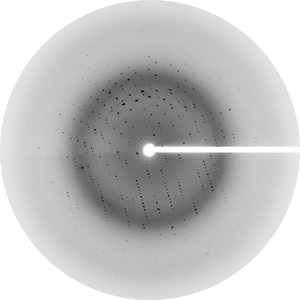

Dataset c6p3_3_###.mar1600 details
| Number of frames | 45 (1 - 45) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 102.0 |
| Wavelength [Å] | 0.97001 |
| Experiment Date | 2001-06-04 |
| Equipment | BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
