Diffraction project datasets TM1102_1o0w

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 1
Download all images (2.3 GB)

PDB website for 1O0W
PDB validation report for 1O0W

doi:10.18430/M31O0W

Project details

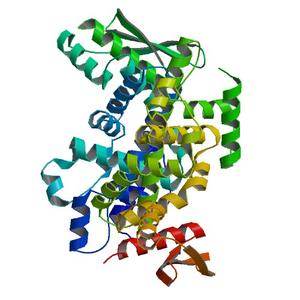

Title Crystal structure of Ribonuclease III (TM1102) from Thermotoga maritima at 2.0 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.23
Unit cell edges [Å] 36.00 x 58.50 x 70.20
Unit cell angles [°] 67.2, 92.0, 77.7

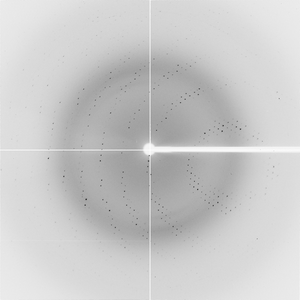

Dataset 11c10p1_3_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 185.0
Oscillation width [°] 2.00
Phi [°] 154.0
Wavelength [Å] 0.97896
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

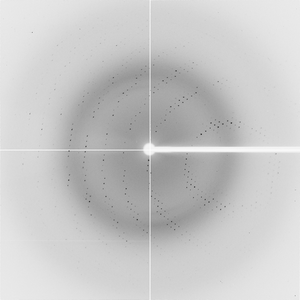

Dataset 11c10p1_3_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 185.0
Oscillation width [°] 2.00
Phi [°] 154.0
Wavelength [Å] 0.91837
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

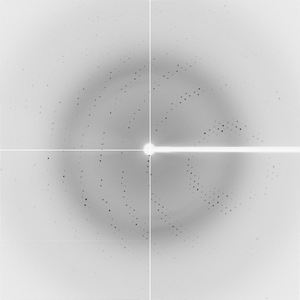

Dataset 11c10p1_3_E3_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 185.0
Oscillation width [°] 2.00
Phi [°] 154.0
Wavelength [Å] 0.97932
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
