Diffraction project datasets TM1097_1vlv

  • Method: Molecular Replacement
  • Resolution: 2.25 Å
  • Space group: F 4 3 2
Download all images (376.1 MB)

PDB website for 1VLV

doi:10.18430/M31VLV

Project details

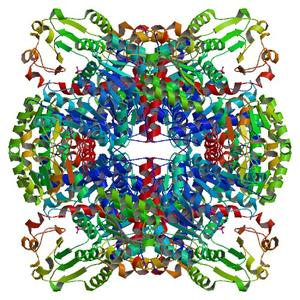

Title Crystal structure of Ornithine carbamoyltransferase (TM1097) from Thermotoga maritima at 2.25 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 210.34 x 210.34 x 210.34
Unit cell angles [°] 90.0, 90.0, 90.0

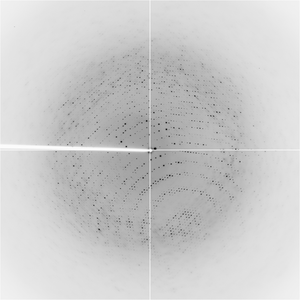

Dataset 7237_1_###.img details

Number of frames 34 (1 - 34)
Distance [mm] 225.0
Oscillation width [°] 0.75
Phi [°] 79.0
Wavelength [Å] 1.00000
Experiment Date 2003-09-21
Equipment 8.2.1 at ALS (Advanced Light Source)

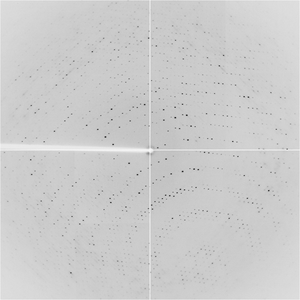

Dataset 7237_2_###.img details

Number of frames 25 (1 - 25)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 79.0
Wavelength [Å] 1.00000
Experiment Date 2003-09-21
Equipment 8.2.1 at ALS (Advanced Light Source)
