Diffraction project datasets TM1081_3f43

  • Method: MAD
  • Resolution: 1.59 Å
  • Space group: P 41 21 2
Download all images (2.5 GB)

PDB website for 3F43

doi:10.18430/M33F43

Project details

Title Crystal structure of a putative anti-sigma factor antagonist (tm1081) from thermotoga maritima at 1.59 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 49.70 x 49.70 x 113.62
Unit cell angles [°] 90.0, 90.0, 90.0

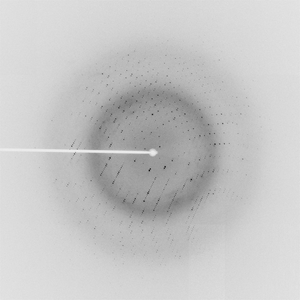

Dataset 96990_1_E1.#### details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 163.0
Wavelength [Å] 0.97967
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)

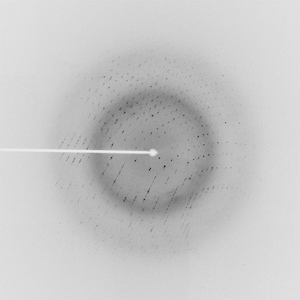

Dataset 96990_1_E2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 163.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)

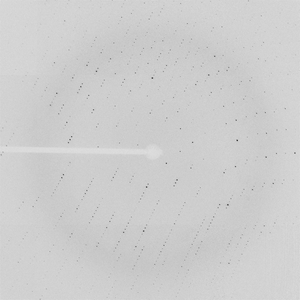

Dataset 96990_2.#### details

Number of frames 45 (1 - 45)
Distance [mm] 400.0
Oscillation width [°] 2.00
Phi [°] 163.0
Wavelength [Å] 0.94645
Experiment Date 2008-10-11
Equipment 23-ID-B at APS (Advanced Photon Source)
