Diffraction project datasets TM1049_2fvg
Project details
| Title |

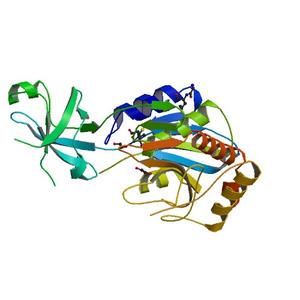

Crystal structure of Endoglucanase (tm1049) from THERMOTOGA MARITIMA at 2.01 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.20 / 0.24 |
| Unit cell edges [Å] |
63.15 x
67.54 x
82.78
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

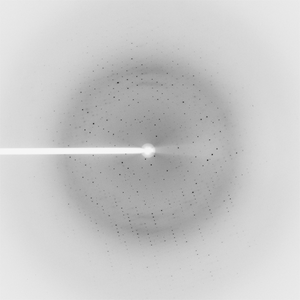

Dataset 18914_2.#### details
| Number of frames |
50 (1 - 50) |
| Distance [mm] |
290.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
-5.0 |
| Wavelength [Å] |
0.97982 |
| Experiment Date |
2005-10-31 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

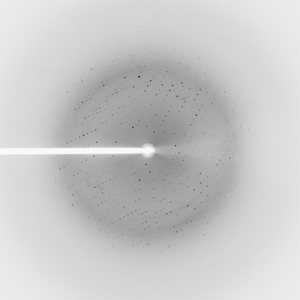

Dataset 18914_3.#### details
| Number of frames |
50 (1 - 50) |
| Distance [mm] |
290.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
44.5 |
| Wavelength [Å] |
0.97982 |
| Experiment Date |
2005-10-31 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

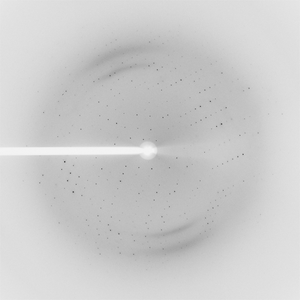

Dataset 18914_4.#### details
| Number of frames |
66 (1 - 66) |
| Distance [mm] |
370.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
90.0 |
| Wavelength [Å] |
0.97982 |
| Experiment Date |
2005-10-31 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

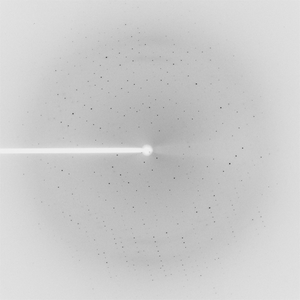

Dataset 18914_5.#### details
| Number of frames |
80 (1 - 80) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
-5.0 |
| Wavelength [Å] |
0.97982 |
| Experiment Date |
2005-10-31 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|
