Diffraction project datasets TM1036_2a0n
- Method: Molecular Replacement
- Resolution: 1.64 Å
- Space group: P 61 2 2
PDB website for 2A0N
PDB validation report for 2A0N
doi:10.18430/M32A0N
Project details

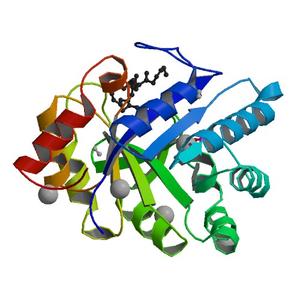

| Title | Crystal structure of Imidazole glycerol phosphate synthase subunit hisF (EC 4.1.3.-) (tm1036) from Thermotoga maritima at 1.64 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.19 |
| Unit cell edges [Å] | 96.61 x 96.61 x 155.83 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

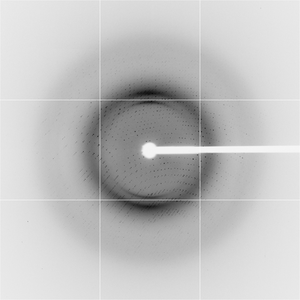

Dataset 10401_1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 165.0 |
| Wavelength [Å] | 0.97975 |
| Equipment | BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

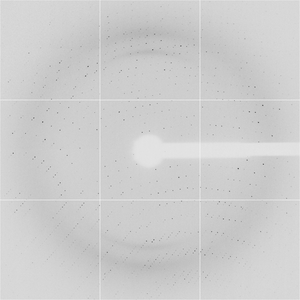

Dataset 10401_2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 165.0 |
| Wavelength [Å] | 0.97975 |
| Equipment | BL9-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
