Diffraction project datasets TM1030_1zkg
- Method: MAD
- Resolution: 2.3 Å
- Space group: P 1 21 1
PDB website for 1ZKG
PDB validation report for 1ZKG
doi:10.18430/M31ZKG
Project details

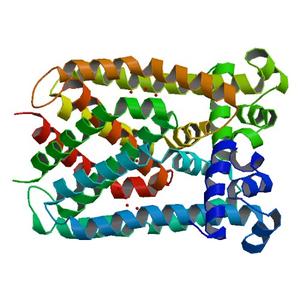

| Title | Crystal structure of Transcriptional regulator, TETR family (tm1030) from Thermotoga maritima at 2.30 A resolution |
| Authors | Premkumar, L., Rife, C.L., Sri Krishna, S., McMullan, D., Miller, M.D., Abdubek, P., Ambing, E., Astakhova, T., Axelrod, H.L., Canaves, J.M., Carlton, D., Chiu, H.J., Clayton, T., DiDonato, M., Duan, L., Elsliger, M.A., Feuerhelm, J., Floyd, R., Grzechnik, S.K., Hale, J., Hampton, E., Han, G.W., Haugen, J., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Koesema, E., Kovarik, J.S., Kreusch, A., Levin, I., McPhillips, T.M., Morse, A.T., Nigoghossian, E., Okach, L., Oommachen, S., Paulsen, J., Quijano, K., Reyes, R., Rezezadeh, F., Rodionov, D., Schwarzenbacher, R., Spraggon, G., van den Bedem, H., White, A., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.20 / 0.26 |
| Unit cell edges [Å] | 50.52 x 87.11 x 59.16 |
| Unit cell angles [°] | 90.0, 110.7, 90.0 |

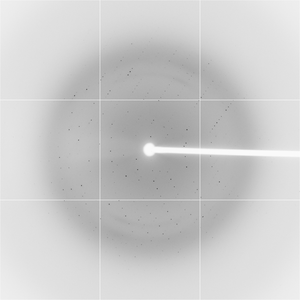

Dataset 15048_1_E1_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.97951 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

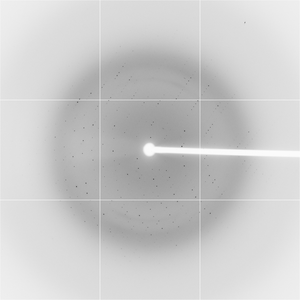

Dataset 15048_1_E2_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.91837 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

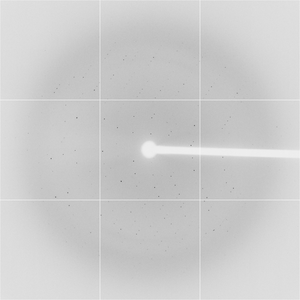

Dataset 15048_2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 2.00 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.91837 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
