Diffraction project datasets TM1010_2f4p

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 65
Download all images (897.3 MB)

PDB website for 2F4P

doi:10.18430/M32F4P

Project details

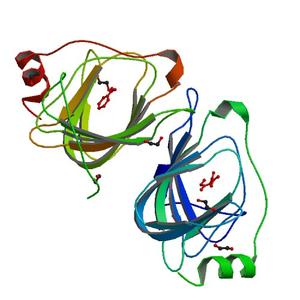

Title Crystal structure of a cupin-like protein (tm1010) from thermotoga maritima msb8 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.16 / 0.22
Unit cell edges [Å] 71.75 x 71.75 x 188.60
Unit cell angles [°] 90.0, 90.0, 120.0

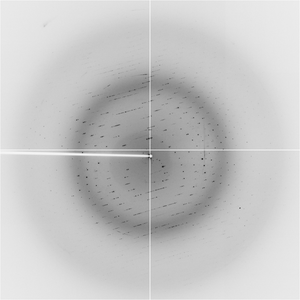

Dataset 18596_1_E1_###.img details

Number of frames 107 (1 - 107)
Distance [mm] 175.0
Oscillation width [°] 1.00
Phi [°] 159.0
Wavelength [Å] 0.97970
Experiment Date 2005-09-29
Equipment 8.2.1 at ALS (Advanced Light Source)

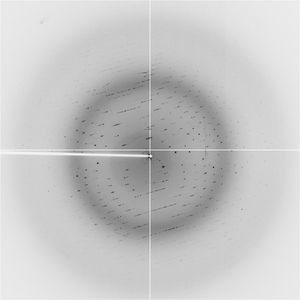

Dataset 18596_1_E2_###.img details

Number of frames 106 (1 - 106)
Distance [mm] 175.0
Oscillation width [°] 1.00
Phi [°] 159.0
Wavelength [Å] 1.00000
Experiment Date 2005-09-29
Equipment 8.2.1 at ALS (Advanced Light Source)

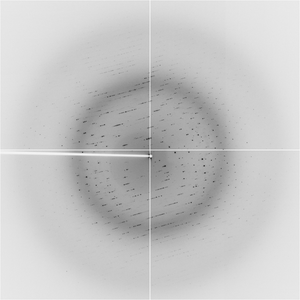

Dataset 18596_2_###.img details

Number of frames 70 (1 - 70)
Distance [mm] 175.0
Oscillation width [°] 1.00
Phi [°] 159.0
Wavelength [Å] 0.97960
Experiment Date 2005-09-29
Equipment 8.2.1 at ALS (Advanced Light Source)
