Diffraction project datasets TM0936_1j6p
Project details
| Title |

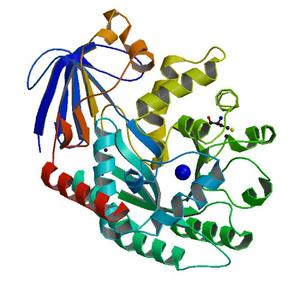

Crystal structure of Metal-dependent hydrolase of cytosinedemaniase/chlorohydrolase family (TM0936) from Thermotoga maritima at 1.9 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.18 / 0.20 |
| Unit cell edges [Å] |
113.78 x
113.78 x
81.31
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

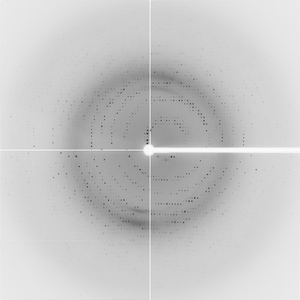

Dataset 17c2p3_1_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
170.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
291.0004 |
| Wavelength [Å] |
0.97922 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

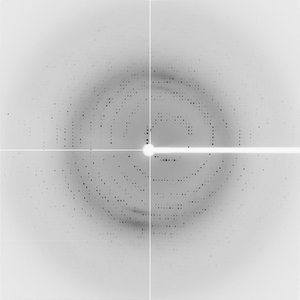

Dataset 17c2p3_2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
184.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
291.0004 |
| Wavelength [Å] |
0.91837 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 17c2p3_3_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
170.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
291.0004 |
| Wavelength [Å] |
0.97893 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

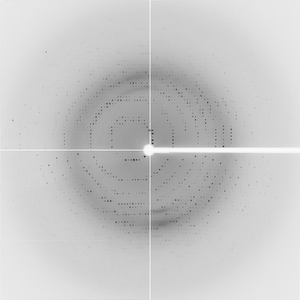

Dataset 17c2p3_4_###.img details
| Number of frames |
52 (1 - 52) |
| Distance [mm] |
170.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
111.0 |
| Wavelength [Å] |
0.97922 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
