Diffraction project datasets TM0922_2ax3

  • Method: MAD
  • Resolution: 2.27 Å
  • Space group: I 4 2 2
Download all images (4.0 GB)

PDB website for 2AX3
PDB validation report for 2AX3

doi:10.18430/M32AX3

Project details

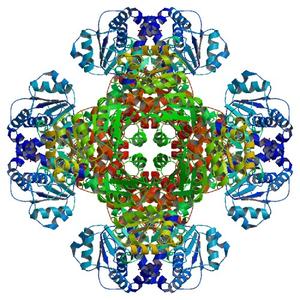

Title CRYSTAL STRUCTURE OF A PUTATIVE CARBOHYDRATE KINASE (TM0922) FROM THERMOTOGA MARITIMA MSB8 AT 2.25 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.22
Unit cell edges [Å] 121.26 x 121.26 x 153.87
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 12996_2_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 284.0
Wavelength [Å] 0.97925
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

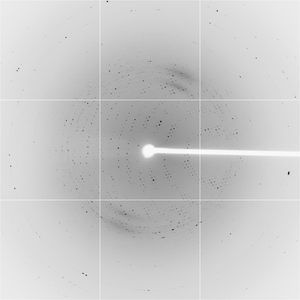

Dataset 12996_2_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 284.0
Wavelength [Å] 0.89194
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

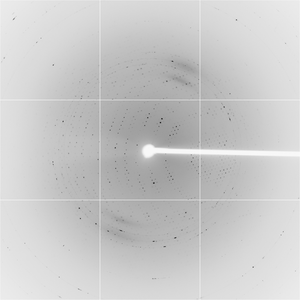

Dataset 12996_3_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 284.0
Wavelength [Å] 0.97908
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
