Diffraction project datasets TM0915_2etj
Project details
| Title |

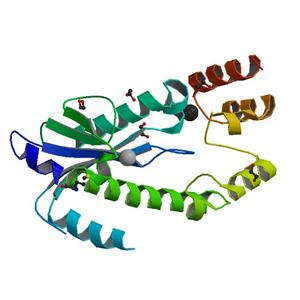

Crystal structure of Ribonuclease HII (EC 3.1.26.4) (RNase HII) (tm0915) from THERMOTOGA MARITIMA at 1.74 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.18 / 0.22 |
| Unit cell edges [Å] |
51.82 x
51.82 x
76.29
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

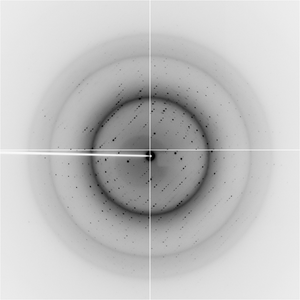

Dataset 18574_1_E1_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
126.0 |
| Wavelength [Å] |
0.97970 |
| Experiment Date |
2005-09-29 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

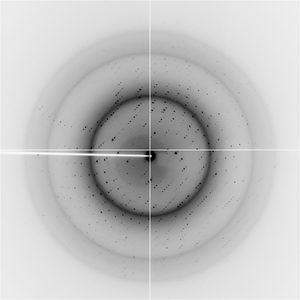

Dataset 18574_1_E2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
126.0 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2005-09-29 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|

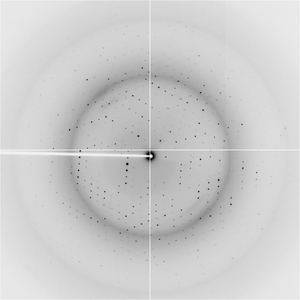

Dataset 18574_2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
216.005 |
| Wavelength [Å] |
1.00000 |
| Experiment Date |
2005-09-29 |
| Equipment |
8.2.1
at ALS (Advanced Light Source)
|
