Diffraction project datasets TM0894_1ztc
- Method: MAD
- Resolution: 2.1 Å
- Space group: P 21 21 21
PDB website for 1ZTC
PDB validation report for 1ZTC
doi:10.18430/M31ZTC
Project details
| Title | Crystal structure of a putative metallo-beta-lactamase (tm0894) from Thermotoga maritima at 2.10 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 89.78 x 127.34 x 152.22 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

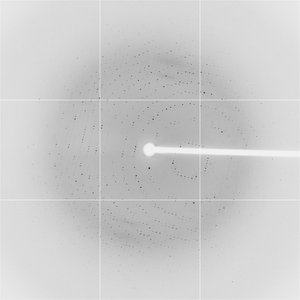

Dataset 15167_2_E1_###.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 119.0 |
| Wavelength [Å] | 0.97941 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

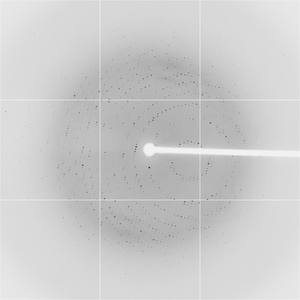

Dataset 15167_2_E2_###.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 119.0 |
| Wavelength [Å] | 0.94642 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
