Diffraction project datasets TM0892_1vr9

  • Method: MAD + Molecular Replacement
  • Resolution: 1.7 Å
  • Space group: C 1 2 1
Download all images (1.6 GB)

PDB website for 1VR9
PDB validation report for 1VR9

doi:10.18430/M31VR9

Project details

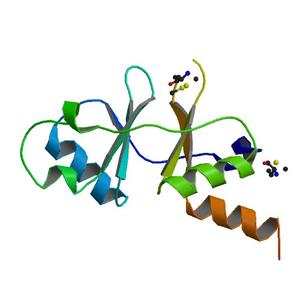

Title CRYSTAL STRUCTURE OF A CBS DOMAIN PAIR/ACT DOMAIN PROTEIN (TM0892) FROM THERMOTOGA MARITIMA AT 1.70 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.25 / 0.27
Unit cell edges [Å] 228.04 x 52.65 x 44.16
Unit cell angles [°] 90.0, 100.4, 90.0

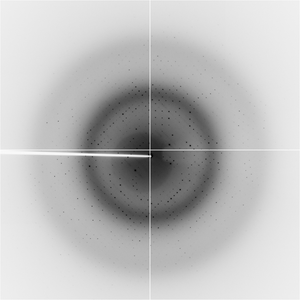

Dataset 12847_4_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 150.0
Oscillation width [°] 0.50
Phi [°] 161.0
Wavelength [Å] 0.99187
Experiment Date 2005-01-21
Equipment 8.3.1 at ALS (Advanced Light Source)

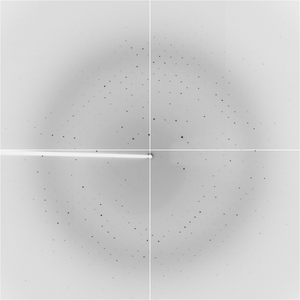

Dataset 12847_5_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 160.5
Wavelength [Å] 0.99187
Experiment Date 2005-01-21
Equipment 8.3.1 at ALS (Advanced Light Source)
