Diffraction project datasets TM0881_2h2w

  • Method: Molecular Replacement
  • Resolution: 2.52 Å
  • Space group: P 31 2 1
Download all images (814.3 MB)

PDB website for 2H2W

doi:10.18430/M32H2W

Project details

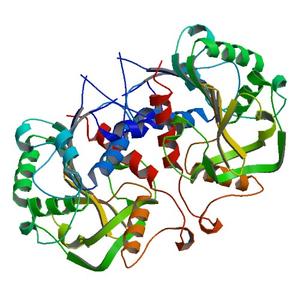

Title Crystal structure of Homoserine O-succinyltransferase (EC 2.3.1.46) (Homoserine O-transsuccinylase) (HTS) (tm0881) from THERMOTOGA MARITIMA at 2.52 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.19 / 0.27
Unit cell edges [Å] 72.61 x 72.61 x 126.91
Unit cell angles [°] 90.0, 90.0, 120.0

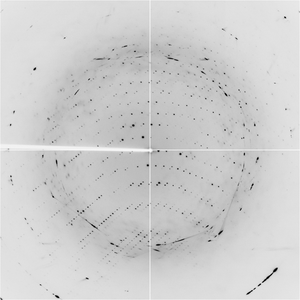

Dataset 7083_1_###.img details

Number of frames 150 (1 - 150)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 17.0
Wavelength [Å] 1.00000
Experiment Date 2003-09-21
Equipment 8.2.1 at ALS (Advanced Light Source)

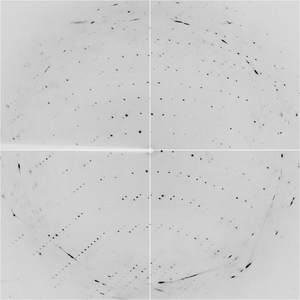

Dataset 7083_2_###.img details

Number of frames 150 (1 - 150)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 17.0
Wavelength [Å] 1.00000
Experiment Date 2003-09-21
Equipment 8.2.1 at ALS (Advanced Light Source)
