Diffraction project datasets TM0875_1o22
- Method: MAD
- Resolution: 2.0 Å
- Space group: P 43 21 2
PDB website for 1O22
PDB validation report for 1O22
doi:10.18430/M31O22
Project details

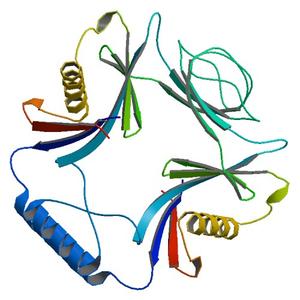

| Title | Crystal structure of an orphan protein (TM0875) from Thermotoga maritima at 2.00 A resolution |
| Authors | Bakolitsa, C., Schwarzenbacher, R., McMullan, D., Brinen, L.S., Canaves, J.M., Dai, X., Deacon, A.M., Elsliger, M.A., Eshagi, S., Floyd, R., Godzik, A., Grittini, C., Grzechnik, S.K., Jaroszewski, L., Karlak, C., Klock, H.E., Koesema, E., Kovarik, J.S., Kreusch, A., Kuhn, P., Lesley, S.A., McPhillips, T.M., Miller, M.D., Morse, A., Moy, K., Ouyang, J., Page, R., Quijano, K., Robb, A., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Vincent, J., von Delft, F., Wang, X., West, B., Wolf, G., Hodgson, K.O., Wooley, J., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.18 / 0.24 |
| Unit cell edges [Å] | 58.41 x 58.41 x 102.49 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

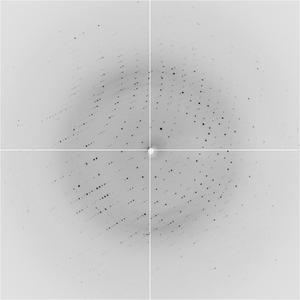

Dataset tm0875_8p44_1_E1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.97780 |
| Experiment Date | 2002-10-13 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |

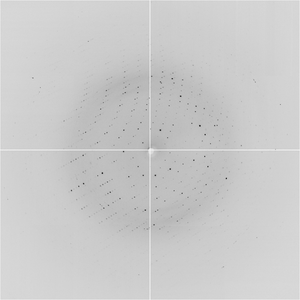

Dataset tm0875_8p44_1_E2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.91840 |
| Experiment Date | 2002-10-13 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |

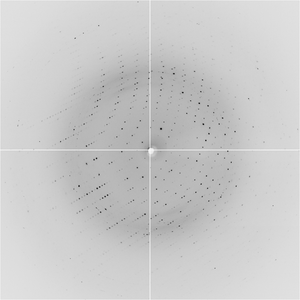

Dataset tm0875_8p44_1_E3_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.97920 |
| Experiment Date | 2002-10-13 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |

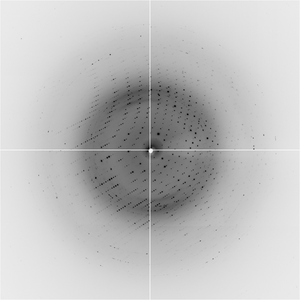

Dataset tm0875_8p44_2_###.img details
| Number of frames | 70 (1 - 70) |
| Distance [mm] | 150.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.99990 |
| Experiment Date | 2002-10-13 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |

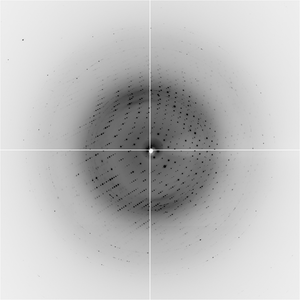

Dataset tm0875_high_1_###.img details
| Number of frames | 37 (1 - 37) |
| Distance [mm] | 150.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.99190 |
| Experiment Date | 2002-10-14 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |
