Diffraction project datasets TM0874_2a6a
- Method: MAD
- Resolution: 2.5 Å
- Space group: C 2 2 2
PDB website for 2A6A
PDB validation report for 2A6A
doi:10.18430/M32A6A
Project details

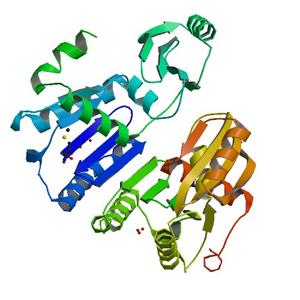

| Title | Crystal structure of Glycoprotein endopeptidase (tm0874) from THERMOTOGA MARITIMA at 2.50 A resolution |
| Authors | Xu, Q., McMullan, D., Jaroszewski, L., Krishna, S.S., Elsliger, M.A., Yeh, A.P., Abdubek, P., Astakhova, T., Axelrod, H.L., Carlton, D., Chiu, H.J., Clayton, T., Duan, L., Feuerhelm, J., Grant, J., Han, G.W., Jin, K.K., Klock, H.E., Knuth, M.W., Miller, M.D., Morse, A.T., Nigoghossian, E., Okach, L., Oommachen, S., Paulsen, J., Reyes, R., Rife, C.L., van den Bedem, H., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 93.27 x 217.11 x 51.95 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

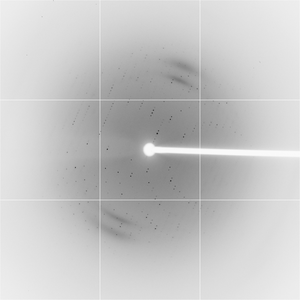

Dataset 15154_1_E1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 244.0 |
| Wavelength [Å] | 0.97941 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

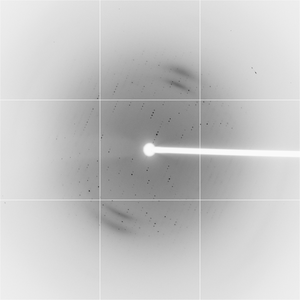

Dataset 15154_1_E2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 244.0 |
| Wavelength [Å] | 0.91837 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
