Diffraction project datasets TM0816_2eth
Project details
| Title |

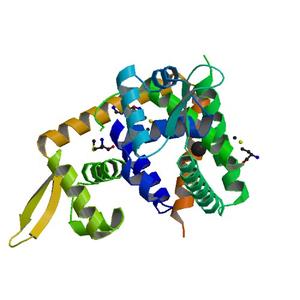

Crystal structure of a marr-like transcriptional regulator (tm0816) from thermotoga maritima at 2.50 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.23 / 0.26 |
| Unit cell edges [Å] |
98.85 x
58.44 x
80.43
|
| Unit cell angles [°] |
90.0,
125.9,
90.0
|

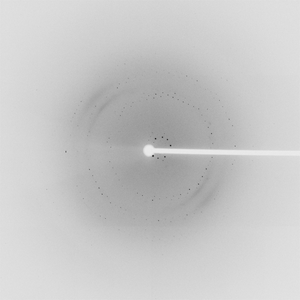

Dataset 14965_2_E1_###.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
235.0 |
| Wavelength [Å] |
0.97932 |
| Experiment Date |
2005-07-25 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

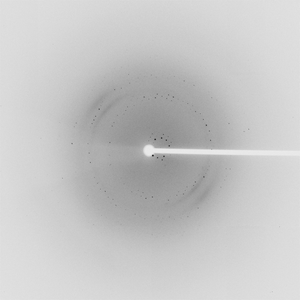

Dataset 14965_2_E2_###.mccd details
| Number of frames |
93 (1 - 93) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
235.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2005-07-25 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

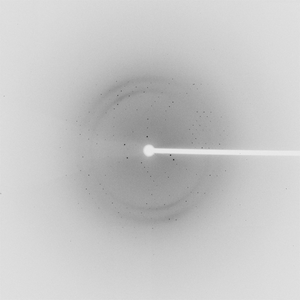

Dataset 14965_2_E2_###.mccd details
| Number of frames |
86 (95 - 180) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
329.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2005-07-25 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

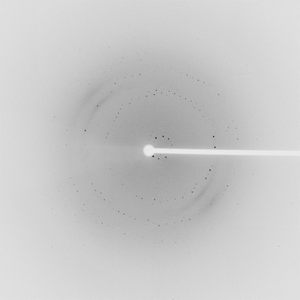

Dataset 14965_As_1_###.mccd details
| Number of frames |
121 (1 - 121) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
235.0 |
| Wavelength [Å] |
1.04404 |
| Experiment Date |
2005-07-25 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
