Diffraction project datasets TM0800_3bo9

  • Method: MAD
  • Resolution: 2.71 Å
  • Space group: P 43 21 2
Download all images (4.3 GB)

PDB website for 3BO9
PDB validation report for 3BO9

doi:10.18430/M33BO9

Project details

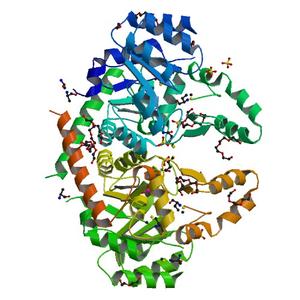

Title Crystal structure of putative nitroalkan dioxygenase (TM0800) from Thermotoga maritima at 2.71 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.21
Unit cell edges [Å] 128.06 x 128.06 x 161.68
Unit cell angles [°] 90.0, 90.0, 90.0

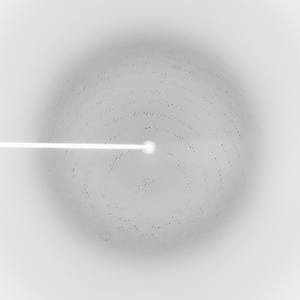

Dataset 65408_1_E1.#### details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 170.0
Wavelength [Å] 0.97953
Experiment Date 2007-10-27
Equipment 23-ID-D at APS (Advanced Photon Source)

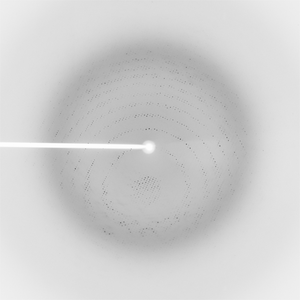

Dataset 65408_1_E2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 170.0
Wavelength [Å] 0.91840
Experiment Date 2007-10-27
Equipment 23-ID-D at APS (Advanced Photon Source)

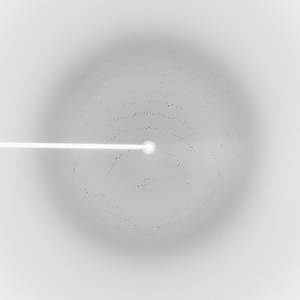

Dataset 65408_2.#### details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 170.0
Wavelength [Å] 0.97939
Experiment Date 2007-10-27
Equipment 23-ID-D at APS (Advanced Photon Source)
