Diffraction project datasets TM0727_1vl4
- Method: MAD
- Resolution: 1.95 Å
- Space group: P 21 21 21
PDB website for 1VL4
doi:10.18430/M31VL4
Project details

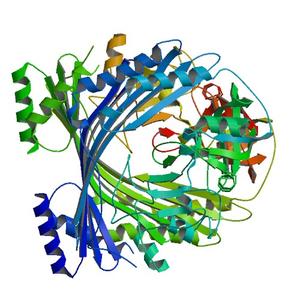

| Title | CRYSTAL STRUCTURE OF A PUTATIVE MODULATOR OF A DNA GYRASE (TM0727) FROM THERMOTOGA MARITIMA MSB8 AT 1.95 A RESOLUTION |
| Authors | Rife, C., Schwarzenbacher, R., McMullan, D., Abdubek, P., Ambing, E., Axelrod, H., Biorac, T., Canaves, J.M., Chiu, H.J., Deacon, A.M., DiDonato, M., Elsliger, M.A., Godzik, A., Grittini, C., Grzechnik, S.K., Hale, J., Hampton, E., Han, G.W., Haugen, J., Hornsby, M., Jaroszewski, L., Klock, H.E., Koesema, E., Kreusch, A., Kuhn, P., Lesley, S.A., Miller, M.D., Moy, K., Nigoghossian, E., Paulsen, J., Quijano, K., Reyes, R., Sims, E., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Vincent, J., White, A., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Wilson, I.A. |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 80.37 x 106.64 x 120.38 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

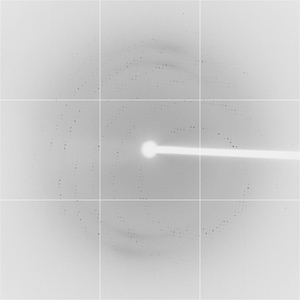

Dataset 10690_1_E1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 272.0 |
| Wavelength [Å] | 0.97956 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

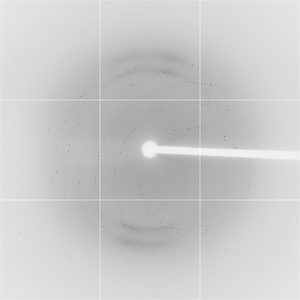

Dataset 10690_1_E2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 272.0 |
| Wavelength [Å] | 0.89840 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

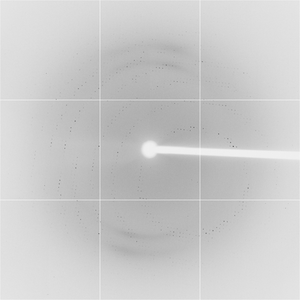

Dataset 10690_1_E3_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 272.0 |
| Wavelength [Å] | 0.97926 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
