Diffraction project datasets TM0723_1vmj

  • Method: Molecular Replacement
  • Resolution: 1.52 Å
  • Space group: P 43 3 2
Download all images (5.6 GB)

PDB website for 1VMJ
PDB validation report for 1VMJ

doi:10.18430/M31VMJ

Project details

Title CRYSTAL STRUCTURE OF A PUTATIVE THIAMIN PHOSPHATE SYNTHASE (TM0723) FROM THERMOTOGA MARITIMA MSB8 AT 1.52 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 110.19 x 110.19 x 110.19
Unit cell angles [°] 90.0, 90.0, 90.0

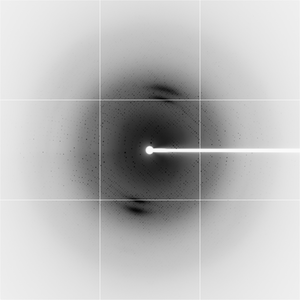

Dataset 3c4p4_1_###.img details

Number of frames 53 (1 - 53)
Distance [mm] 230.0
Oscillation width [°] 2.00
Phi [°] 336.0
Wavelength [Å] 1.02463
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

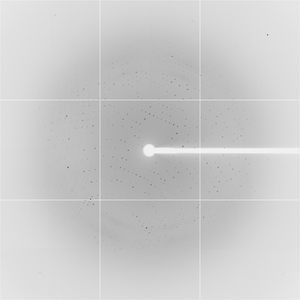

Dataset 3c4p4_2_###.img details

Number of frames 89 (2 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 166.0
Wavelength [Å] 1.02463
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

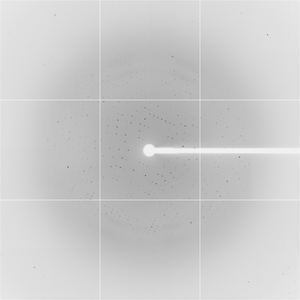

Dataset 3c4p4_3_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 165.0
Wavelength [Å] 1.02463
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
