Diffraction project datasets TM0693_2g42

  • Method: SAD
  • Resolution: 2.28 Å
  • Space group: P 1 21 1
Download all images (1.2 GB)

PDB website for 2G42
PDB validation report for 2G42

doi:10.18430/M32G42

Project details

Title Crystal structure of a putative nucleic acid binding protein (tm0693) from thermotoga maritima at 2.28 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.25
Unit cell edges [Å] 41.17 x 26.76 x 73.22
Unit cell angles [°] 90.0, 97.2, 90.0

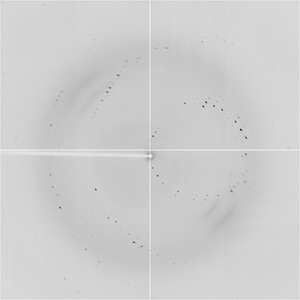

Dataset 20247_1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 170.0
Wavelength [Å] 0.97960
Experiment Date 2005-12-15
Equipment 8.2.1 at ALS (Advanced Light Source)

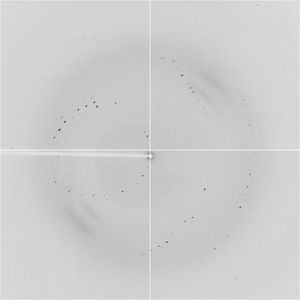

Dataset 20247_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 350.005
Wavelength [Å] 0.97960
Experiment Date 2005-12-15
Equipment 8.2.1 at ALS (Advanced Light Source)

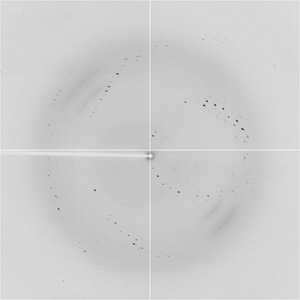

Dataset 20247_3_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 170.01
Wavelength [Å] 0.99990
Experiment Date 2005-12-15
Equipment 8.2.1 at ALS (Advanced Light Source)
