Diffraction project datasets TM0693_2fzt

  • Method: MAD
  • Resolution: 2.05 Å
  • Space group: P 1 21 1
Download all images (1.5 GB)

PDB website for 2FZT

doi:10.18430/M32FZT

Project details

Title CRYSTAL STRUCTURE OF a putative nucleic acid binding protein (TM0693) FROM THERMOTOGA MARITIMA MSB8 AT 2.05 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.19 / 0.25
Unit cell edges [Å] 49.63 x 27.43 x 65.38
Unit cell angles [°] 90.0, 102.6, 90.0

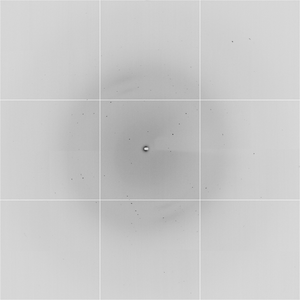

Dataset 20282_1_E1_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 280.0
Oscillation width [°] 1.50
Phi [°] 45.0
Wavelength [Å] 0.97970
Experiment Date 2005-12-15
Equipment 8.2.2 at ALS (Advanced Light Source)

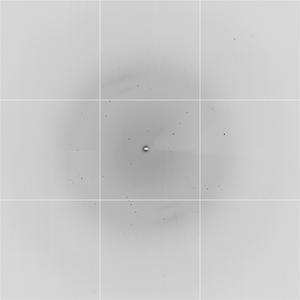

Dataset 20282_1_E2_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 280.0
Oscillation width [°] 1.50
Phi [°] 45.0
Wavelength [Å] 0.99990
Experiment Date 2005-12-15
Equipment 8.2.2 at ALS (Advanced Light Source)
