Diffraction project datasets TM0655_1vr7
Project details
| Title |

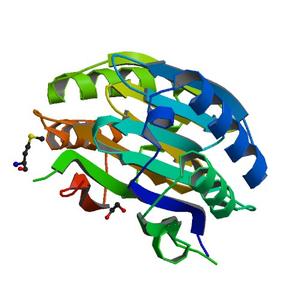

Crystal structure of S-adenosylmethionine decarboxylase proenzyme (TM0655) from THERMOTOGA MARITIMA at 1.2 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| Unit cell edges [Å] |
105.30 x
105.30 x
69.43
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

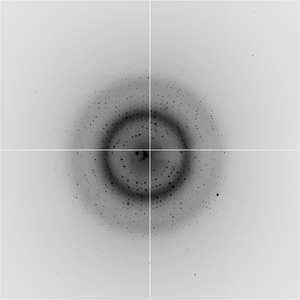

Dataset 13089_1_###.img details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
100.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
183.0 |
| Wavelength [Å] |
0.97960 |
| Experiment Date |
2005-01-05 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

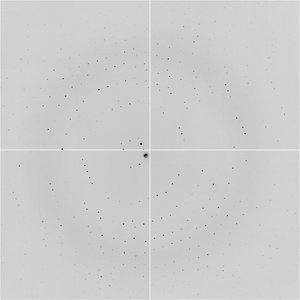

Dataset 13089_2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
183.0 |
| Wavelength [Å] |
0.97960 |
| Experiment Date |
2005-01-05 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

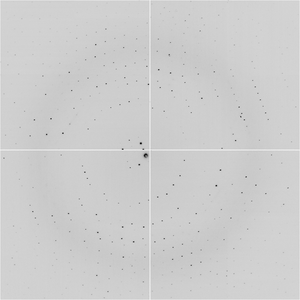

Dataset 13089_3_E1_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
183.0 |
| Wavelength [Å] |
1.01987 |
| Experiment Date |
2005-01-05 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|

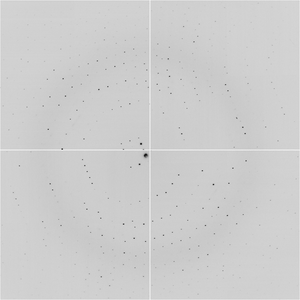

Dataset 13089_3_E2_###.img details
| Number of frames |
90 (1 - 90) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
183.0 |
| Wavelength [Å] |
0.97974 |
| Experiment Date |
2005-01-05 |
| Equipment |
8.3.1
at ALS (Advanced Light Source)
|
