Diffraction project datasets TM0574_1vky
- Method: MAD
- Resolution: 2.0 Å
- Space group: I 2 2 2
PDB website for 1VKY
PDB validation report for 1VKY
doi:10.18430/M31VKY
Project details
| Title | Crystal structure of S-adenosylmethionine tRNA ribosyltransferase (TM0574) from Thermotoga maritima at 2.00 A resolution |
| Authors | Mathews, I., Schwarzenbacher, R., McMullan, D., Abdubek, P., Ambing, E., Axelrod, H., Biorac, T., Canaves, J.M., Chiu, H.J., Deacon, A.M., DiDonato, M., Elsliger, M.A., Godzik, A., Grittini, C., Grzechnik, S.K., Hale, J., Hampton, E., Han, G.W., Haugen, J., Hornsby, M., Jaroszewski, L., Klock, H.E., Koesema, E., Kreusch, A., Kuhn, P., Lesley, S.A., Levin, I., Miller, M.D., Moy, K., Nigoghossian, E., Ouyang, J., Paulsen, J., Quijano, K., Reyes, R., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Vincent, J., White, A., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.18 / 0.21 |
| Unit cell edges [Å] | 119.03 x 122.84 x 131.21 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

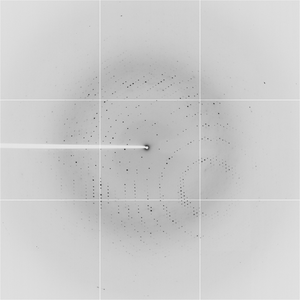

Dataset c1m_1_###.img details
| Number of frames | 96 (1 - 96) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 20.0 |
| Wavelength [Å] | 0.97930 |
| Experiment Date | 2003-10-18 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

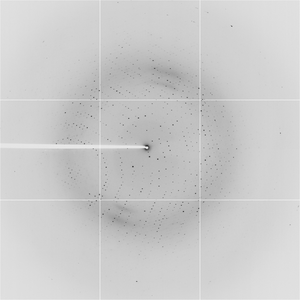

Dataset c1m_2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 68.0 |
| Wavelength [Å] | 0.97930 |
| Experiment Date | 2003-10-19 |
| Equipment | 19-ID at APS (Advanced Photon Source) |

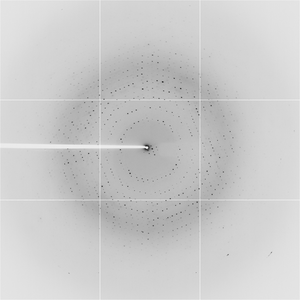

Dataset c1m_3_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 113.0 |
| Wavelength [Å] | 0.97930 |
| Experiment Date | 2003-10-19 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
