Diffraction project datasets TM0570_1vma

  • Method: Molecular Replacement
  • Resolution: 1.6 Å
  • Space group: P 1 21 1
Download all images (2.6 GB)

PDB website for 1VMA
PDB validation report for 1VMA

doi:10.18430/M31VMA

Project details

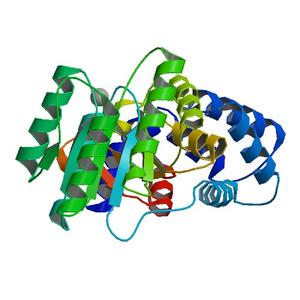

Title Crystal structure of Cell division protein ftsY (TM0570) from Thermotoga maritima at 1.60 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.21 / 0.25
Unit cell edges [Å] 78.45 x 48.10 x 90.79
Unit cell angles [°] 90.0, 107.9, 90.0

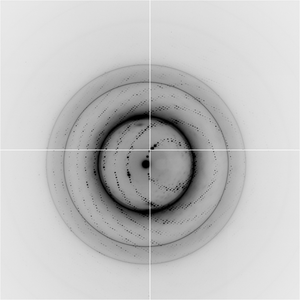

Dataset 10175_1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 120.0
Oscillation width [°] 1.00
Phi [°] 337.0
Wavelength [Å] 1.00004
Equipment 8.3.1 at ALS (Advanced Light Source)

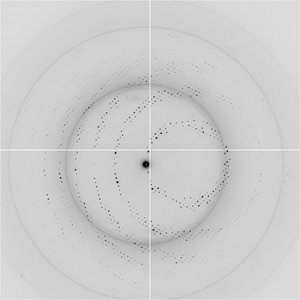

Dataset 10175_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 2.00
Phi [°] 337.0
Wavelength [Å] 1.00004
Equipment 8.3.1 at ALS (Advanced Light Source)

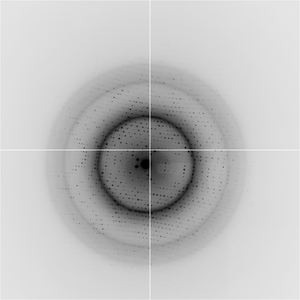

Dataset 10175_3_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 120.0
Oscillation width [°] 1.00
Phi [°] 67.0
Wavelength [Å] 1.00004
Equipment 8.3.1 at ALS (Advanced Light Source)
