Diffraction project datasets TM0556_1vlc

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 3 2 1
Download all images (7.2 GB)

PDB website for 1VLC
PDB validation report for 1VLC

doi:10.18430/M31VLC

Project details

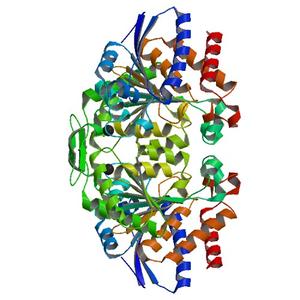

Title Crystal structure of 3-isopropylmalate dehydrogenase (TM0556) from Thermotoga maritima at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 118.78 x 118.78 x 56.70
Unit cell angles [°] 90.0, 90.0, 120.0

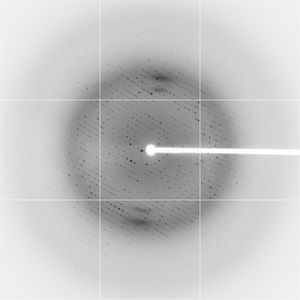

Dataset 10911_1_###.img details

Number of frames 144 (1 - 144)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 79.0
Wavelength [Å] 0.97945
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

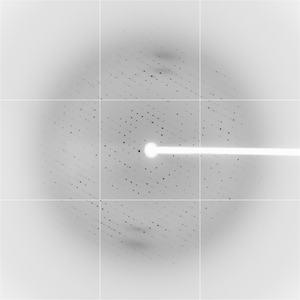

Dataset 10911_2_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 370.0
Oscillation width [°] 1.00
Phi [°] 79.0
Wavelength [Å] 0.97945
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

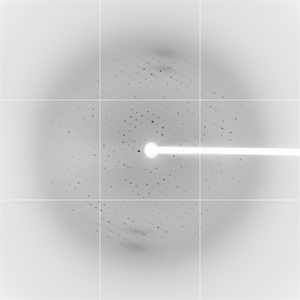

Dataset 10911_3_###.img details

Number of frames 100 (1 - 100)
Distance [mm] 380.0
Oscillation width [°] 1.00
Phi [°] 79.0
Wavelength [Å] 0.97945
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
