Diffraction project datasets TM0446_1o4v
- Method: Molecular Replacement
- Resolution: 1.77 Å
- Space group: I 4 2 2
PDB website for 1O4V
PDB validation report for 1O4V
doi:10.18430/M31O4V
Project details

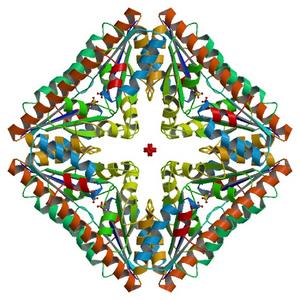

| Title | Crystal structure of the catalytic subunit of a phosphoribosylaminoimidazole mutase (tm0446) from thermotoga maritima at 1.77 A resolution |
| Authors | Schwarzenbacher, R., Jaroszewski, L., von Delft, F., Abdubek, P., Ambing, E., Biorac, T., Brinen, L.S., Canaves, J.M., Cambell, J., Chiu, H.J., Dai, X., Deacon, A.M., DiDonato, M., Elsliger, M.A., Eshagi, S., Floyd, R., Godzik, A., Grittini, C., Grzechnik, S.K., Hampton, E., Karlak, C., Klock, H.E., Koesema, E., Kovarik, J.S., Kreusch, A., Kuhn, P., Lesley, S.A., Levin, I., McMullan, D., McPhillips, T.M., Miller, M.D., Morse, A., Moy, K., Ouyang, J., Page, R., Quijano, K., Robb, A., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Vincent, J., Wang, X., West, B., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 103.25 x 103.25 x 65.44 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

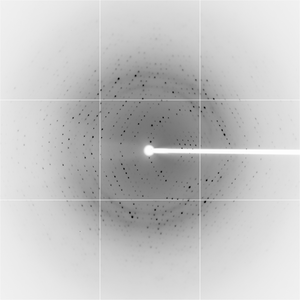

Dataset 2785_1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 179.0 |
| Wavelength [Å] | 0.95369 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

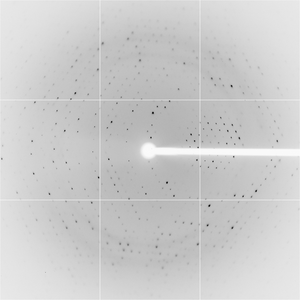

Dataset 2785_2_###.img details
| Number of frames | 60 (1 - 60) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 1.50 |
| Phi [°] | 179.0 |
| Wavelength [Å] | 0.95369 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
