Diffraction project datasets TM0378_1z82
Project details
| Title |

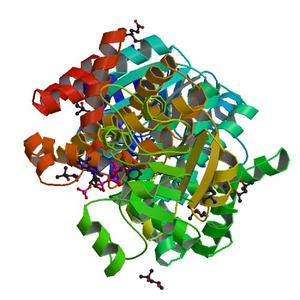

Crystal structure of glycerol-3-phosphate dehydrogenase (TM0378) from THERMOTOGA MARITIMA at 2.00 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.17 / 0.21 |
| Unit cell edges [Å] |
65.09 x
67.45 x
75.60
|
| Unit cell angles [°] |
90.0,
113.7,
90.0
|

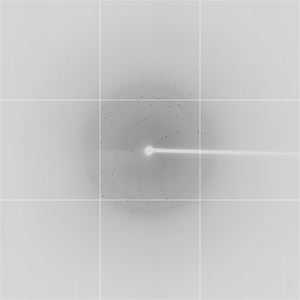

Dataset 13120_1_E1_###.img details
| Number of frames |
30 (1 - 30) |
| Distance [mm] |
240.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
250.0 |
| Wavelength [Å] |
0.97925 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 13120_2_E1_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
240.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
250.0 |
| Wavelength [Å] |
0.97925 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

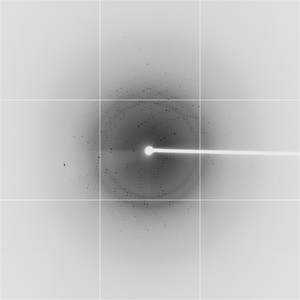

Dataset 13120_2_E2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
240.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
250.0 |
| Wavelength [Å] |
0.89194 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

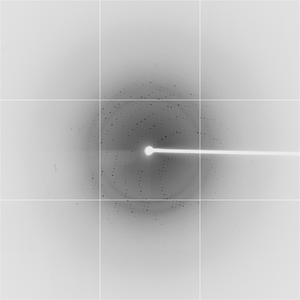

Dataset 13120_3_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
240.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
250.0 |
| Wavelength [Å] |
0.97905 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
