Diffraction project datasets TM0343_1vr6
- Method: Molecular Replacement
- Resolution: 1.92 Å
- Space group: P 21 21 21
PDB website for 1VR6
PDB validation report for 1VR6
doi:10.18430/M31VR6
Project details

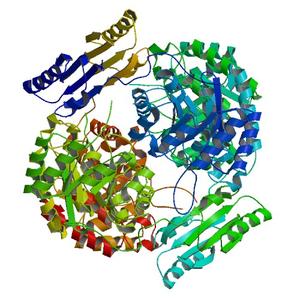

| Title | Crystal structure of Phospho-2-dehydro-3-deoxyheptonate aldolase (DAHP synthase) (TM0343) from Thermotoga Maritima at 1.92 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 73.15 x 74.23 x 249.54 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

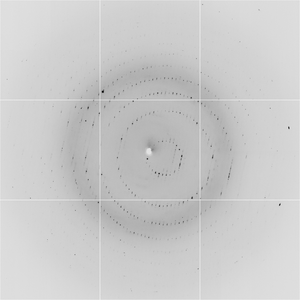

Dataset 11636_1_###.img details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | -15.0 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2004-08-03 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |
