Diffraction project datasets TM0332_1vqt

  • Method: Molecular Replacement
  • Resolution: 2.0 Å
  • Space group: C 1 2 1
Download all images (1.7 GB)

PDB website for 1VQT
PDB validation report for 1VQT

doi:10.18430/M31VQT

Project details

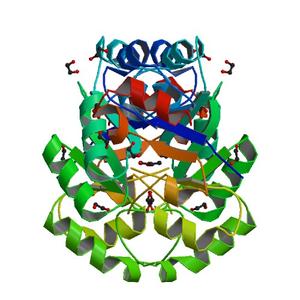

Title Crystal structure of Orotidine 5'-phosphate decarboxylase (TM0332) from Thermotoga maritima at 2.00 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 70.69 x 85.55 x 48.72
Unit cell angles [°] 90.0, 130.2, 90.0

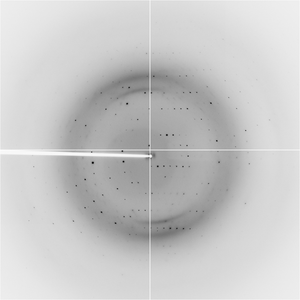

Dataset 12283_1_###.img details

Number of frames 27 (1 - 27)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 90.0
Wavelength [Å] 1.00003
Experiment Date 2004-09-30
Equipment 8.2.1 at ALS (Advanced Light Source)

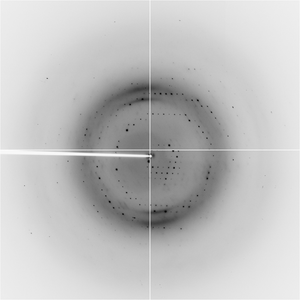

Dataset 12283_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 117.0
Wavelength [Å] 1.00004
Experiment Date 2004-09-30
Equipment 8.2.1 at ALS (Advanced Light Source)

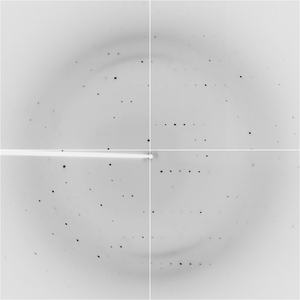

Dataset 12283_3_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 90.0
Wavelength [Å] 1.00003
Experiment Date 2004-09-30
Equipment 8.2.1 at ALS (Advanced Light Source)
