Diffraction project datasets TM0312_1zh8

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: P 1 21 1
Download all images (8.4 GB)

PDB website for 1ZH8
PDB validation report for 1ZH8

doi:10.18430/M31ZH8

Project details

Title Crystal structure of Oxidoreductase (TM0312) from Thermotoga maritima at 2.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 64.85 x 63.09 x 101.17
Unit cell angles [°] 90.0, 104.9, 90.0

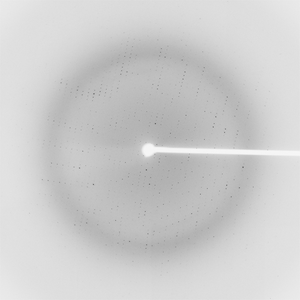

Dataset 14775_2_E1_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 375.0
Oscillation width [°] 1.00
Phi [°] 130.5
Wavelength [Å] 0.97929
Experiment Date 2005-03-30
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

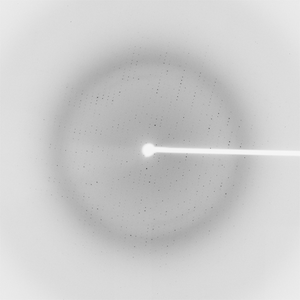

Dataset 14775_2_E2_###.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 375.0
Oscillation width [°] 1.00
Phi [°] 130.5
Wavelength [Å] 0.91837
Experiment Date 2005-03-30
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

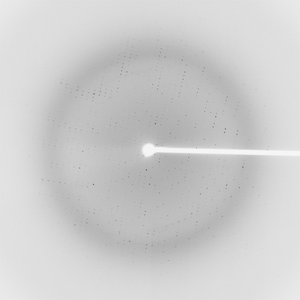

Dataset 14775_3_###.mccd details

Number of frames 360 (1 - 360)
Distance [mm] 375.0
Oscillation width [°] 1.00
Phi [°] 130.5
Wavelength [Å] 0.97929
Experiment Date 2005-03-30
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
