Diffraction project datasets TM0295_1vpx

  • Method: Molecular Replacement
  • Resolution: 2.4 Å
  • Space group: P 1 21 1
Download all images (2.5 GB)

PDB website for 1VPX
PDB validation report for 1VPX

doi:10.18430/M31VPX

Project details

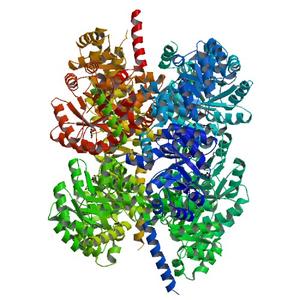

Title Crystal structure of Transaldolase (EC 2.2.1.2) (TM0295) from Thermotoga maritima at 2.40 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.25
Unit cell edges [Å] 145.30 x 104.42 x 171.12
Unit cell angles [°] 90.0, 109.0, 90.0

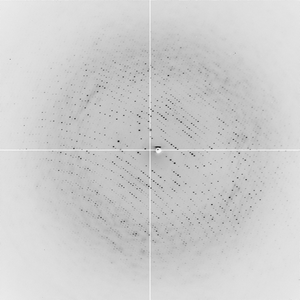

Dataset 9686_1_###.img details

Number of frames 61 (1 - 61)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 50.0
Wavelength [Å] 1.00000
Experiment Date 2004-02-12
Equipment 5.0.3 at ALS (Advanced Light Source)

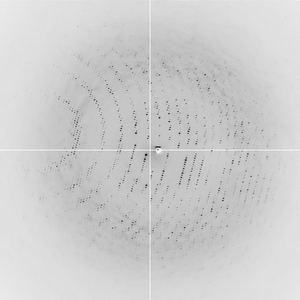

Dataset 9686_2_###.img details

Number of frames 160 (1 - 160)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 80.5
Wavelength [Å] 1.00000
Experiment Date 2004-02-12
Equipment 5.0.3 at ALS (Advanced Light Source)

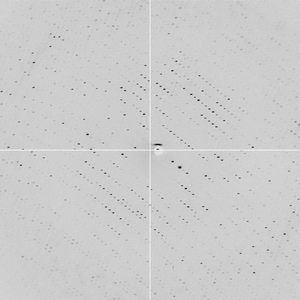

Dataset 9686_3_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 50.0
Wavelength [Å] 1.00000
Experiment Date 2004-02-12
Equipment 5.0.3 at ALS (Advanced Light Source)
