Diffraction project datasets TM0269_1j6r

  • Method: MAD
  • Resolution: 2.3 Å
  • Space group: C 1 2 1
Download all images (1.9 GB)

PDB website for 1J6R

doi:10.18430/M31J6R

Project details

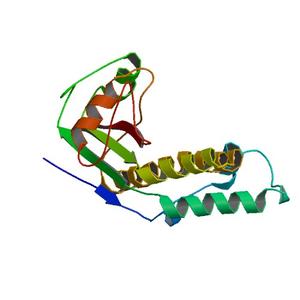

Title Crystal structure of Activation (AdoMet binding) domain of Methionine synthase (TM0269) from Thermotoga maritima at 2.2 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.25 / 0.29
Unit cell edges [Å] 119.40 x 60.74 x 81.57
Unit cell angles [°] 90.0, 100.0, 90.0

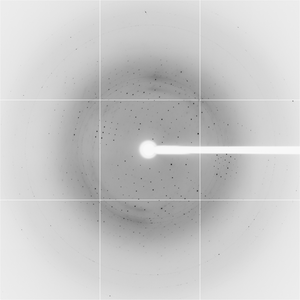

Dataset 18c14p3_1_###.img details

Number of frames 140 (1 - 140)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] 310.0004
Wavelength [Å] 0.98008
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

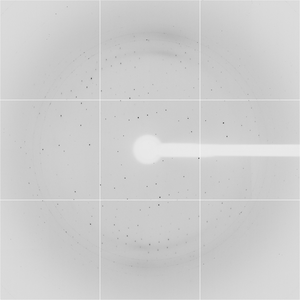

Dataset 18c14p3_2_###.img details

Number of frames 70 (1 - 70)
Distance [mm] 450.0
Oscillation width [°] 2.00
Phi [°] 88.0
Wavelength [Å] 0.98008
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
