Diffraction project datasets TM0246_3dcz

  • Method: MAD
  • Resolution: 1.65 Å
  • Space group: C 2 2 21
Download all images (3.3 GB)

PDB website for 3DCZ
PDB validation report for 3DCZ

doi:10.18430/M33DCZ

Project details

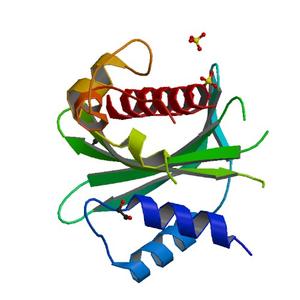

Title CRYSTAL STRUCTURE OF A PUTATIVE RNFG SUBUNIT OF ELECTRON TRANSPORT COMPLEX (TM0246) FROM THERMOTOGA MARITIMA AT 1.65 A RESOLUTION
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 91.12 x 103.83 x 44.03
Unit cell angles [°] 90.0, 90.0, 90.0

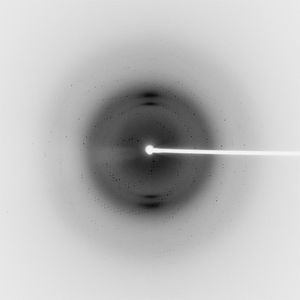

Dataset 85482_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 235.0
Wavelength [Å] 0.97932
Experiment Date 2008-05-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

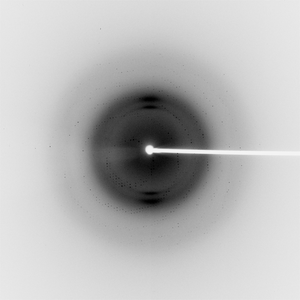

Dataset 85482_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 235.0
Wavelength [Å] 0.91162
Experiment Date 2008-05-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

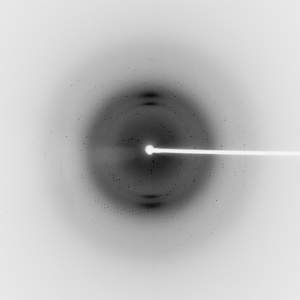

Dataset 85482_2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 220.0
Oscillation width [°] 1.00
Phi [°] 235.0
Wavelength [Å] 0.97891
Experiment Date 2008-05-14
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
