Diffraction project datasets TM0216_1j5w
Project details
| Title |

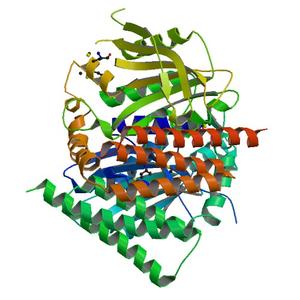

Crystal structure of Glycyl-tRNA synthetase alpha chain (TM0216) from Thermotoga maritima at 1.95 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.20 / 0.25 |
| Unit cell edges [Å] |
65.40 x
66.20 x
142.10
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

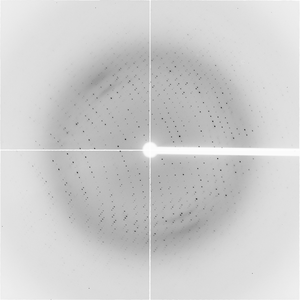

Dataset c12p3_1_###.img details
| Number of frames |
45 (1 - 45) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
2.00 |
| Phi [°] |
126.0 |
| Wavelength [Å] |
0.97936 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

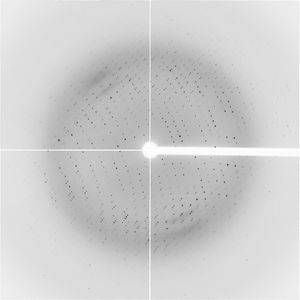

Dataset c12p3_2_###.img details
| Number of frames |
45 (1 - 45) |
| Distance [mm] |
214.0 |
| Oscillation width [°] |
2.00 |
| Phi [°] |
126.0 |
| Wavelength [Å] |
0.92522 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset c12p3_3_###.img details
| Number of frames |
45 (1 - 45) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
2.00 |
| Phi [°] |
126.0 |
| Wavelength [Å] |
0.97915 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

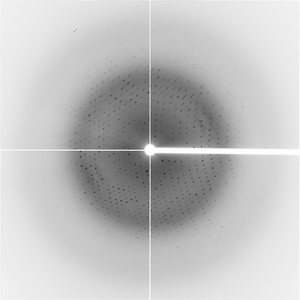

Dataset c12p3_5_###.img details
| Number of frames |
30 (1 - 30) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
201.0 |
| Wavelength [Å] |
0.99984 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

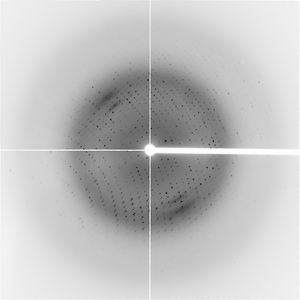

Dataset c12p3_6_###.img details
| Number of frames |
30 (1 - 30) |
| Distance [mm] |
150.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
121.0 |
| Wavelength [Å] |
0.99984 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
