Diffraction project datasets TM0215_2b33
- Method: MR
- Resolution: 2.3 Å
- Space group: H 3
PDB website for 2B33
PDB validation report for 2B33
doi:10.18430/M32B33
Project details

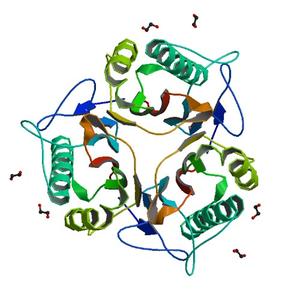

| Title | CRYSTAL STRUCTURE OF A PUTATIVE ENDORIBONUCLEASE (TM0215) FROM THERMOTOGA MARITIMA MSB8 AT 2.30 A RESOLUTION |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.26 |
| Unit cell edges [Å] | 53.28 x 53.28 x 228.41 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

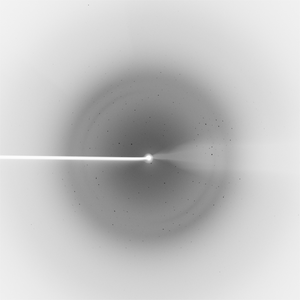

Dataset 17386_1.#### details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 4.0 |
| Wavelength [Å] | 0.95373 |
| Experiment Date | 2005-08-03 |
| Equipment | 23-ID-D at APS (Advanced Photon Source) |

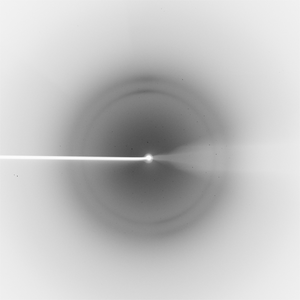

Dataset 17386_2.#### details
| Number of frames | 60 (1 - 60) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 94.0 |
| Wavelength [Å] | 0.95373 |
| Experiment Date | 2005-08-03 |
| Equipment | 23-ID-D at APS (Advanced Photon Source) |
