Diffraction project datasets TM0067_2afb
- Method: MAD
- Resolution: 2.05 Å
- Space group: H 3 2
PDB website for 2AFB
PDB validation report for 2AFB
doi:10.18430/M32AFB
Project details
| Title | Crystal structure of 2-dehydro-3- deoxygluconokinase (EC 2.7.1.45) (tm0067) from THERMOTOGA MARITIMA at 2.05 A resolution |
| Authors | Mathews, I.I., McMullan, D., Miller, M.D., Canaves, J.M., Elsliger, M.A., Floyd, R., Grzechnik, S.K., Jaroszewski, L., Klock, H.E., Koesema, E., Kovarik, J.S., Kreusch, A., Kuhn, P., McPhillips, T.M., Morse, A.T., Quijano, K., Rife, C.L., Schwarzenbacher, R., Spraggon, G., Stevens, R.C., van den Bedem, H., Weekes, D., Wolf, G., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.18 / 0.23 |
| Unit cell edges [Å] | 120.99 x 120.99 x 260.30 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

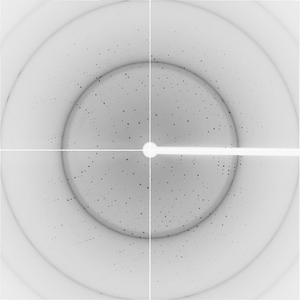

Dataset c5p1_1_###.img details
| Number of frames | 164 (1 - 164) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | -37.0 |
| Wavelength [Å] | 0.97941 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

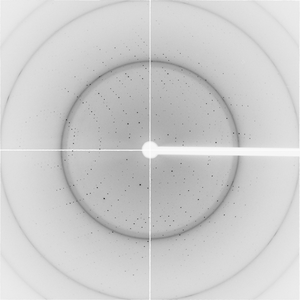

Dataset c5p1_2_###.img details
| Number of frames | 164 (1 - 164) |
| Distance [mm] | 219.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | -37.0 |
| Wavelength [Å] | 0.90496 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

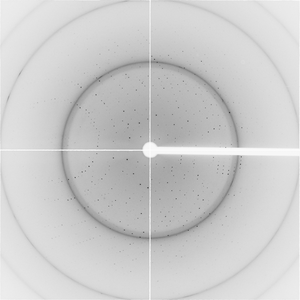

Dataset c5p1_3_###.img details
| Number of frames | 164 (1 - 164) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | -37.0 |
| Wavelength [Å] | 0.97915 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
