Diffraction project datasets TM0021_1o51
- Method: SAD
- Resolution: 2.5 Å
- Space group: P 43 3 2
PDB website for 1O51
PDB validation report for 1O51
doi:10.18430/M31O51
Project details
| Title | Crystal structure of a putative PII-like signaling protein (TM0021) from Thermotoga maritima at 2.50 A resolution |
| Authors | Schwarzenbacher, R., von Delft, F., Abdubek, P., Ambing, E., Biorac, T., Brinen, L.S., Canaves, J.M., Cambell, J., Chiu, H.J., Dai, X., Deacon, A.M., DiDonato, M., Elsliger, M.A., Eshagi, S., Floyd, R., Godzik, A., Grittini, C., Grzechnik, S.K., Hampton, E., Jaroszewski, L., Karlak, C., Klock, H.E., Koesema, E., Kovarik, J.S., Kreusch, A., Kuhn, P., Lesley, S.A., Levin, I., McMullan, D., McPhillips, T.M., Miller, M.D., Morse, A., Moy, K., Ouyang, J., Page, R., Quijano, K., Robb, A., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Vincent, J., Wang, X., West, B., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.18 / 0.23 |
| Unit cell edges [Å] | 100.11 x 100.11 x 100.11 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset high.### details
| Number of frames | 98 (1 - 98) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -0.01 |
| Wavelength [Å] | 0.98011 |
| Experiment Date | 2002-10-26 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
Dataset infl.### details
| Number of frames | 98 (1 - 98) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -0.01 |
| Wavelength [Å] | 0.97934 |
| Experiment Date | 2002-10-26 |
| Equipment | 19-BM at APS (Advanced Photon Source) |

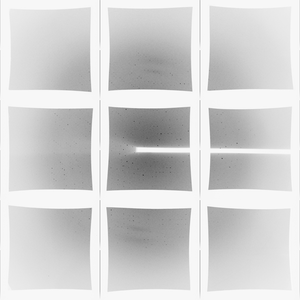

Dataset lowr.### details
| Number of frames | 98 (1 - 98) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -0.01 |
| Wavelength [Å] | 0.98694 |
| Experiment Date | 2002-10-26 |
| Equipment | 19-BM at APS (Advanced Photon Source) |

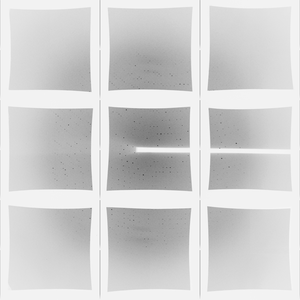

Dataset peak.### details
| Number of frames | 98 (1 - 98) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -0.01 |
| Wavelength [Å] | 0.97914 |
| Experiment Date | 2002-10-26 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
Dataset remo.### details
| Number of frames | 26 (1 - 26) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -0.01 |
| Wavelength [Å] | 0.95667 |
| Experiment Date | 2002-10-26 |
| Equipment | 19-BM at APS (Advanced Photon Source) |
